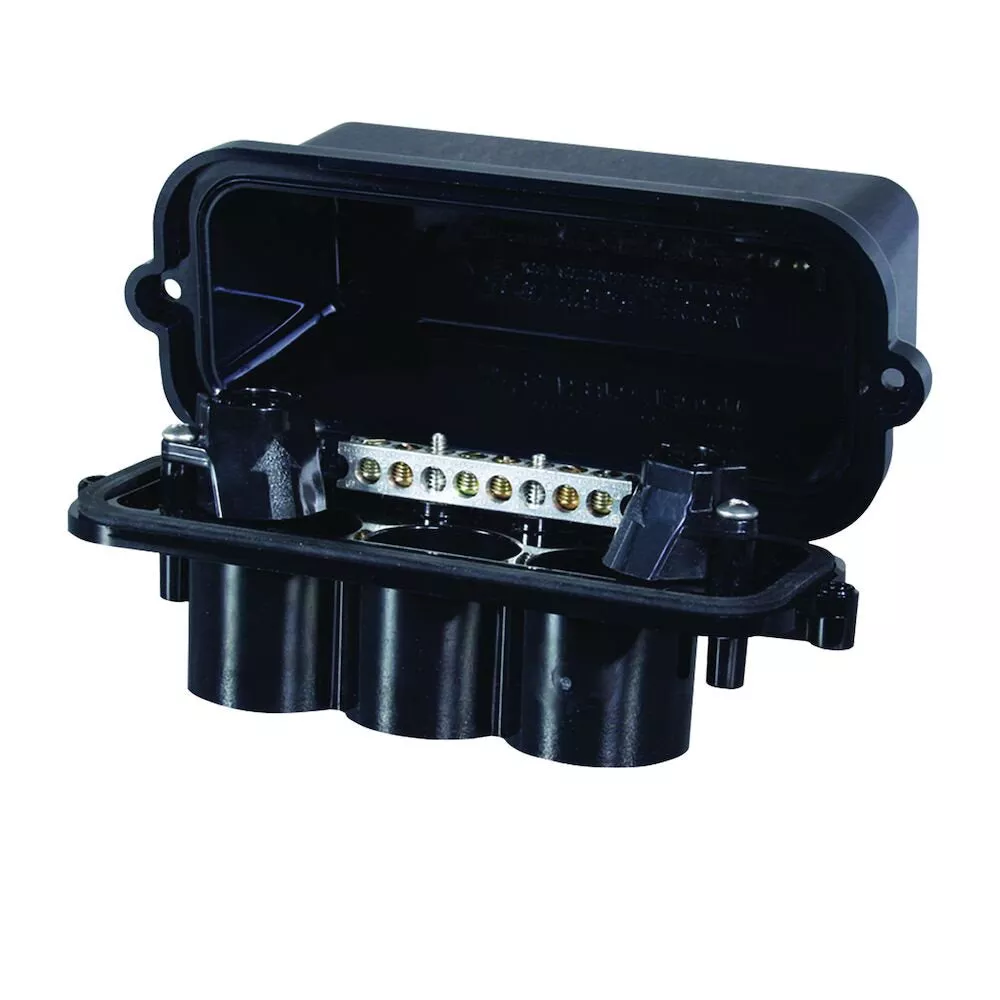

These polymeric junction boxes are code compliant and provide safe, reliable connections for low-voltage lights. Specially designed for pools, pool-spa combinations, and landscape applications. Junction boxes are for outdoor use only.
Features:
- Patented design that combines a standard junction box with a built-in transformer
- Accommodates flexible cords and non-metallic conduits from ½” to 1″
- Watertight, multifixture enclosure
- Easy access ground bar
- PA114 Wall/Post Mounting Bracket (sold separately)
- Complies with NEC Code 680.24 requirements for junction boxes
- 1-year warranty
Applications:
- Landscape Lighting
- Underwater Lighting
Specifications:
| Mounting Options | Bracket, Post, Rod, Wall | Number Of Light Connections | 2 |
| Warranty Period | 1-Year limited | Body Material | Plastic |
| Category | Junction Boxes Web | Non Metallic Conduit Size | 1/2″-1″ |
| Product Depth (in) | 4 | Product Depth (mm) | 101.6 |
| Product Height (in) | 7.25 | Product Height (mm) | 184.2 |
| Product Width (in) | 3 | Product Width (mm) | 76.2 |
| Unit Carton Height (in) | 3.223 | Unit Carton Length (in) | 7.653 |
| Unit Carton Weight (lb) | 0.878 | Unit Carton Width (in) | 4.683 |
Specs
Mounting OptionsBracket, Post, Rod, WallNumber Of Light Connections2
Warranty Period1-Year limitedBody MaterialPlastic
CategoryJunction Boxes WebNon Metallic Conduit Size1/2″-1″
Product Depth (in)4Product Depth (mm)101.6
Product Height (in)7.25Product Height (mm)184.2
Product Width (in)3Product Width (mm)76.2
Unit Carton Height (in)3.223Unit Carton Length (in)7.653
Unit Carton Weight (lb)0.878Unit Carton Width (in)4.683
Dimension
Product Depth (in)4
Product Height (in)7.25
Product Width (in)3
