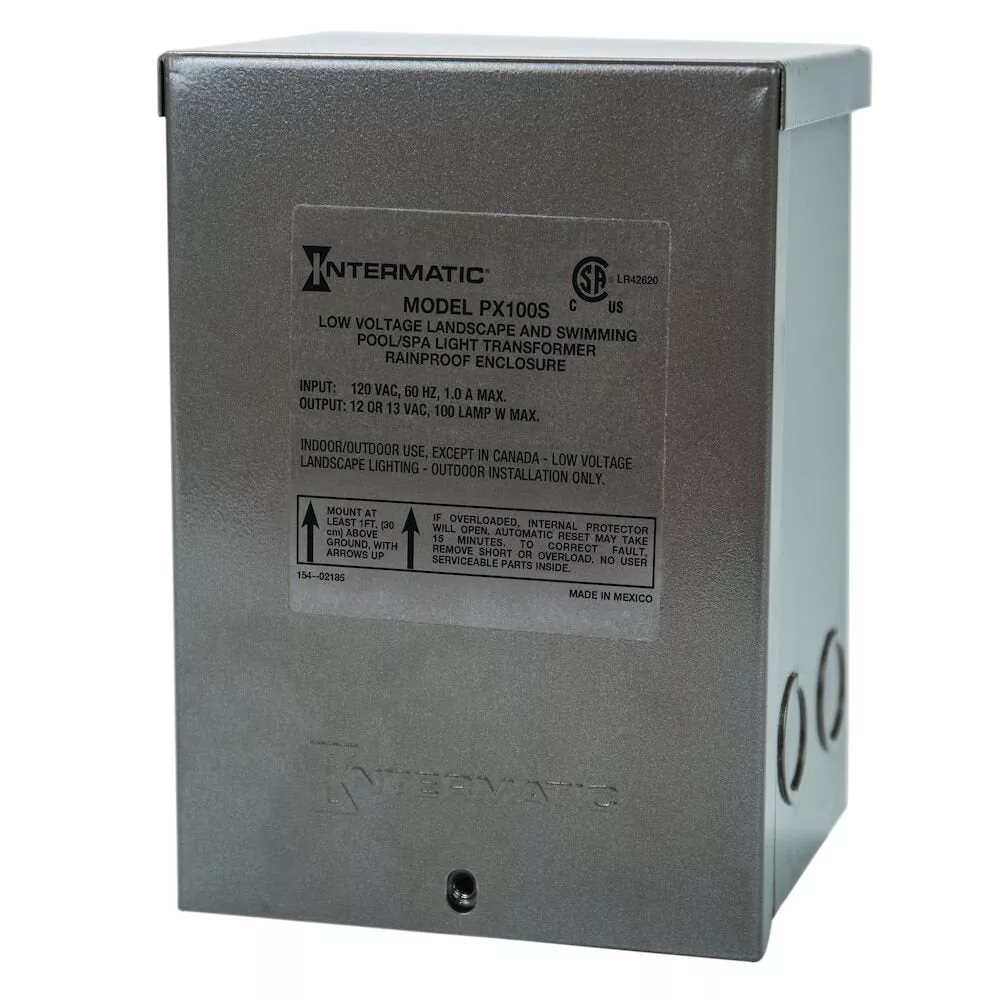

Intermatic PX100S 100 W Pool & Spa Safety Transformer, Stainless Steel Enclosure, Input 120V, Output 12,13,14V
These safety transformers are specifically designed to supply 12,13 and 14 VAC and are suitable for direct connection to underwater pool/spa lights. A grounded shield between the primary and secondary winding assures safe operation. Built-in circuit protection will disconnect power to the transformer in case of an overload.
Features:
- Mounting brackets on the top and bottom
- Built-in circuit protection disconnects power temporarily in case of overload
- Complies with NEC Code 680.23 requirements forunderwater luminaries
Applications:
- Landscape Lighting
- Underwater Lighting
Specifications:
| Input Voltage Range(s) | 1 A, 120 VAC, 60 Hz | Enclosure Type | 3R Brown stainless steel |
| Transformer Output Voltage | 12 VAC, 13 VAC, 14 VAC | Maximum Power Consumption (W) | 100 W |
| Warranty Period | 1-Year limited | Knockout Dimensions Back | (2) combination 1/2″ – 3/4″ |
| Knockout Dimensions Bottom | (4) combination 1/2″ – 3/4″ | Knockout Dimensions Left | (2) combination 1/2″ – 3/4″ |
| Knockout Dimensions Right | (2) combination 1/2″ – 3/4″ | Transformer Input Voltage | 1 A, 120 VAC, 60 Hz |
| Transformer Output Voltage | 12, 13, 14 VAC | Product Depth (in) | 4.5 |
| Product Depth (mm) | 114.3 | Product Height (in) | 7.25 |
| Product Height (mm) | 184.2 | Product Width (in) | 5.25 |
| Product Width (mm) | 133 | Unit Carton Height (in) | 7.88 |
| Unit Carton Length (in) | 5.69 | Unit Carton Weight (lb) | 5.751 |
| Unit Carton Width (in) | 4.56 |
Specs
Input Voltage Range(s)1 A, 120 VAC, 60 HzEnclosure Type3R Brown stainless steel
Transformer Output Voltage12 VAC, 13 VAC, 14 VACMaximum Power Consumption (W)100 W
Warranty Period1-Year limitedKnockout Dimensions Back(2) combination 1/2″ – 3/4″
Knockout Dimensions Bottom(4) combination 1/2″ – 3/4″Knockout Dimensions Left(2) combination 1/2″ – 3/4″
Knockout Dimensions Right(2) combination 1/2″ – 3/4″Transformer Input Voltage1 A, 120 VAC, 60 Hz
Transformer Output Voltage12, 13, 14 VACProduct Depth (in)4.5
Product Depth (mm)114.3Product Height (in)7.25
Product Height (mm)184.2Product Width (in)5.25
Product Width (mm)133Unit Carton Height (in)7.88
Unit Carton Length (in)5.69Unit Carton Weight (lb)5.751
Unit Carton Width (in)4.56
Dimension
Product Depth (in)4.5
Product Height (in)7.25
Product Width (in)5.25
