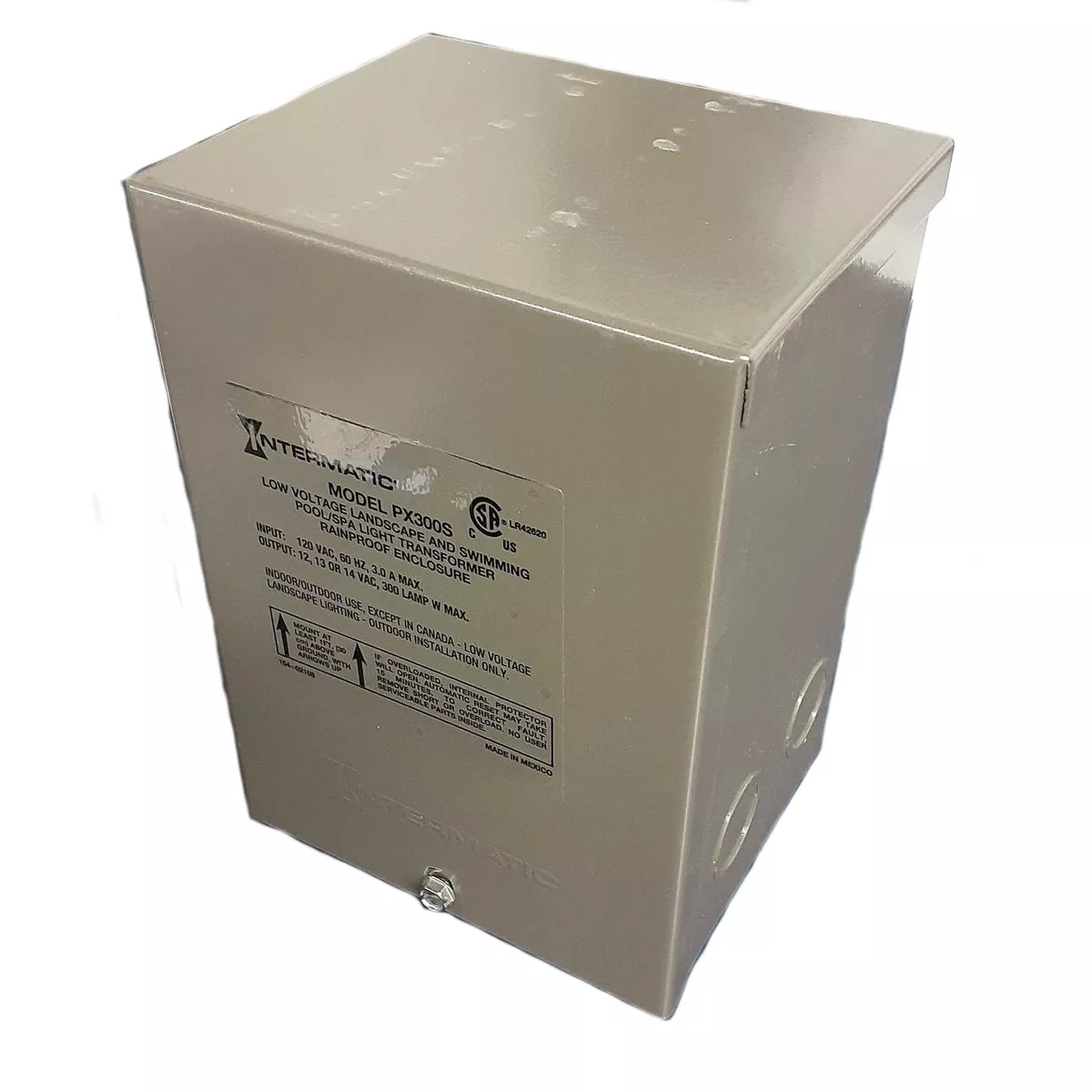

Intermatic – PX300S – 300 W Pool & Spa Safety Transformer

Original price was: $46.32.Current price is: $29.16.

Sale!
SKU: PX300S Category:
Share

Install Manual

Intermatic PX300S 300 W Pool & Spa Safety Transformer, Stainless Steel Enclosure, Input 120V, Output 12,13,14 V

These safety transformers are specifically designed to supply 12-14 VAC and are suitable for direct connection to underwater pool/spa lights. A grounded shield between the primary and secondary winding assures safe operation. Built-in circuit protection will disconnect power to the transformer in case of an overload.

Features:

  • Mounting brackets on the top and bottom
  • Built-in circuit protection disconnects power temporarily in case of overload
  • Complies with NEC Code 680.23 requirements for underwater luminaries

Applications:

  • Landscape Lighting
  • Underwater Lighting

Specifications:

Color Beige Input Voltage Range(s) 3 A, 120 VAC, 60 Hz
Enclosure Type 3R Brown stainless steel Transformer Output Voltage 12 VAC, 13 VAC, 14 VAC
Maximum Power Consumption (W) 300 W Warranty Period 1-Year limited
Knockout Dimensions Back (2) combination 1/2″ – 3/4″ Knockout Dimensions Bottom (4) combination 1/2″ – 3/4″
Knockout Dimensions Left (2) combination 1/2″ – 3/4″ Knockout Dimensions Right (2) combination 1/2″ – 3/4″
Transformer Input Voltage 3 A, 120 VAC, 60 Hz Transformer Output Voltage 12, 13, 14 VAC
Product Depth (in) 4.5 Product Depth (mm) 114.3
Product Height (in) 7.25 Product Height (mm) 184.2
Product Width (in) 5.25 Product Width (mm) 133
Unit Carton Height (in) 7.88 Unit Carton Length (in) 5.69
Unit Carton Weight (lb) 10.5 Unit Carton Width (in) 4.56

Specs

ColorBeigeInput Voltage Range(s)3 A, 120 VAC, 60 Hz
Enclosure Type3R Brown stainless steelTransformer Output Voltage12 VAC, 13 VAC, 14 VAC
Maximum Power Consumption (W)300 WWarranty Period1-Year limited
Knockout Dimensions Back(2) combination 1/2″ – 3/4″Knockout Dimensions Bottom(4) combination 1/2″ – 3/4″
Knockout Dimensions Left(2) combination 1/2″ – 3/4″Knockout Dimensions Right(2) combination 1/2″ – 3/4″
Transformer Input Voltage3 A, 120 VAC, 60 HzTransformer Output Voltage12, 13, 14 VAC
Product Depth (in)4.5Product Depth (mm)114.3
Product Height (in)7.25Product Height (mm)184.2
Product Width (in)5.25Product Width (mm)133
Unit Carton Height (in)7.88Unit Carton Length (in)5.69
Unit Carton Weight (lb)10.5Unit Carton Width (in)4.56

Dimension

Product Depth (in)4.5
Product Height (in)7.25
Product Width (in)5.25
