Install Manual

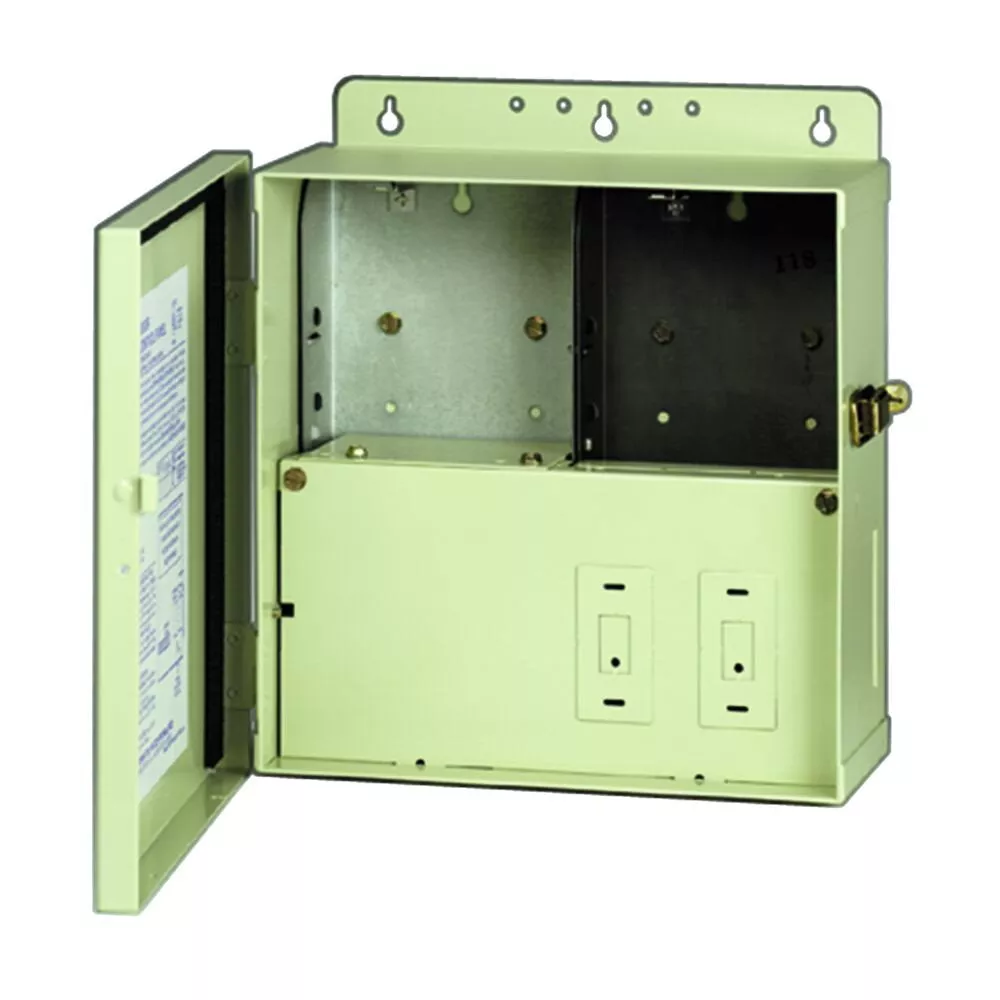

Can be used as a power center only, or add mechanisms or wiring devices for complete control systems.
Features:
- Available with one or two heavy-duty time switch mechanisms
- Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series mechanisms
- Load center dead front has two knockouts for switches or GFCIs and one on the side
- Wiring devices may be installed in these load centers with the use of Standoffs, sold separately below
- Control two-speed pumps with the T10604R
Applications:
- Distribution/Control Panel
Specifications:
| Warranty Period | 1-Year limited | Knockout Dimensions Back | (1) combination 1/2″ – 3/4″ and (1) 3/4″ – 1″ |
| Knockout Dimensions Bottom | (5) combination 1/2″ – 3/4″ and (2) combination 3/4″ – 1″ | Knockout Dimensions Left | (1) combination 1/2″ – 3/4″ |
| Knockout Dimensions Right | (1) 1 3/4″ x 2 3/4″ | Mechanisms | Power Center Only |
| Product Depth (in) | 4.75 | Product Depth (mm) | 120.7 |
| Product Height (in) | 12.875 | Product Height (mm) | 327 |
| Product Width (in) | 10.875 | Product Width (mm) | 276.2 |
| Unit Carton Height (in) | 5.63 | Unit Carton Length (in) | 13.81 |
| Unit Carton Weight (lb) | 9.331 | Unit Carton Width (in) | 12.06 |
Specs
Warranty Period1-Year limitedKnockout Dimensions Back(1) combination 1/2″ – 3/4″ and (1) 3/4″ – 1″
Knockout Dimensions Bottom(5) combination 1/2″ – 3/4″ and (2) combination 3/4″ – 1″Knockout Dimensions Left(1) combination 1/2″ – 3/4″
Knockout Dimensions Right(1) 1 3/4″ x 2 3/4″MechanismsPower Center Only
Product Depth (in)4.75Product Depth (mm)120.7
Product Height (in)12.875Product Height (mm)327
Product Width (in)10.875Product Width (mm)276.2
Unit Carton Height (in)5.63Unit Carton Length (in)13.81
Unit Carton Weight (lb)9.331Unit Carton Width (in)12.06
Dimension
Product Depth (in)4.75
Product Height (in)12.875
Product Width (in)10.875
