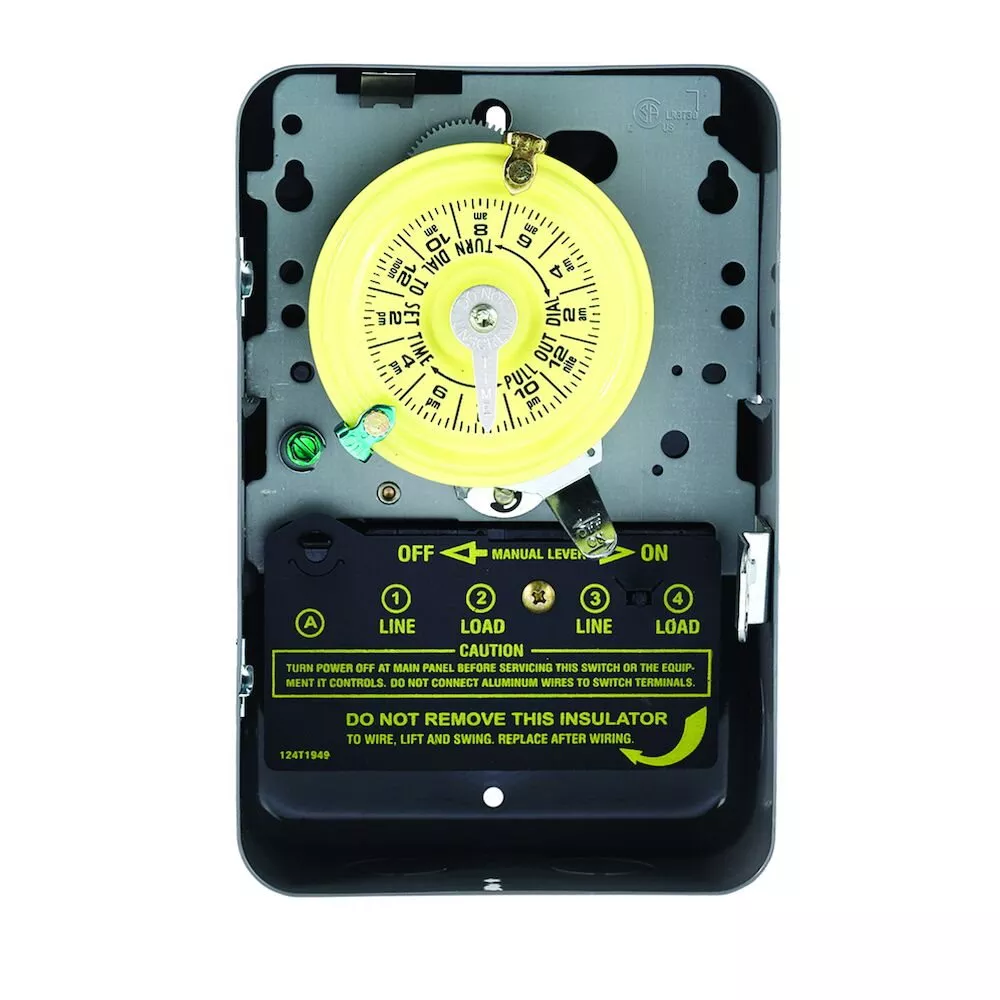

With the easy-to-set “Yellow Dial,” these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of one hour, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.
Features:
- Two sets of ON/OFF trippers
- Enables shifting electricity use into off-peak hours to reduce energy costs
- Convenient external override switch
- Up to 12 ON/12 OFF events
Applications:
- Agriculture Feeders
- Greenhouse Misting Control
- Water Heater Control
Specifications:
| Mechanism Type | Digital/Electrical | Switch Type | DPST |
| Enclosure Type | Indoor type 1 metal | Minimum ON/OFF Times | 1 hour |
| Maximum Power Consumption (W) | 3 W | Warranty Period | 1-Year limited |
| Amps Per Pole | 40 A | Clock Motor Voltage | 208/277 VAC, 60 Hz |
| Rating | General Purpose | Timer Type | Mechanical |
| Watts Resistive | 10000 | Operating Temperature Max (°C) | 54 |
| Operating Temperature Max (°F) | 130 | Operating Temperature Min (°C) | -40 |
| Operating Temperature Min (°F) | -40 | Unit Carton Height (in) | 8.5 |
| Unit Carton Length (in) | 5.5 | Unit Carton Weight (lb) | 2.744 |
| Unit Carton Width (in) | 3.5 |
Specs
Mechanism TypeDigital/ElectricalSwitch TypeDPST
Enclosure TypeIndoor type 1 metalMinimum ON/OFF Times1 hour
Maximum Power Consumption (W)3 WWarranty Period1-Year limited
Amps Per Pole40 AClock Motor Voltage208/277 VAC, 60 Hz
RatingGeneral PurposeTimer TypeMechanical
Watts Resistive10000Operating Temperature Max (°C)54
Operating Temperature Max (°F)130Operating Temperature Min (°C)-40
Operating Temperature Min (°F)-40Unit Carton Height (in)8.5
Unit Carton Length (in)5.5Unit Carton Weight (lb)2.744
Unit Carton Width (in)3.5
