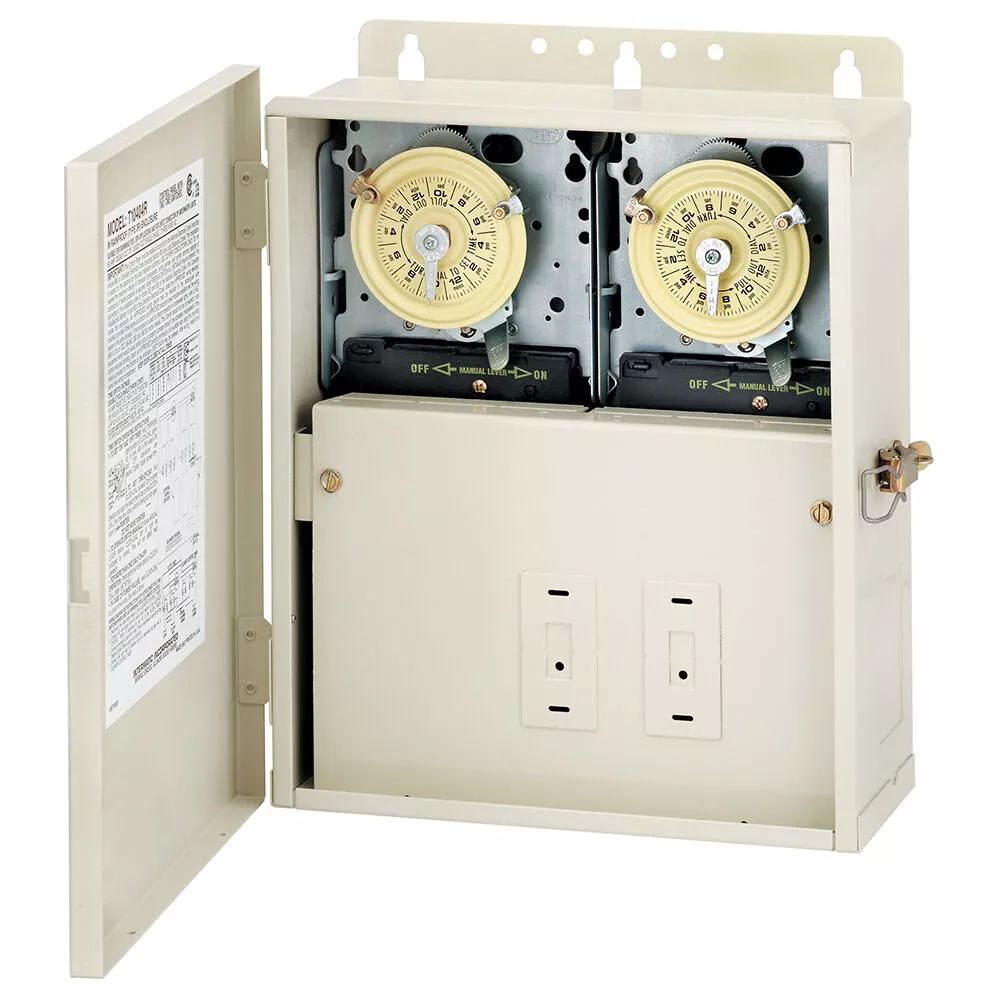

Can be used as a power center only, or add mechanisms or wiring devices for complete control systems.
Features:
- Available with one or two heavy-duty time switch mechanisms
- Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series mechanisms
- Load center dead front has two knockouts for switches or GFCIs and one on the side
- Wiring devices may be installed in these load centers with the use of Standoffs, sold separately below
- Control two-speed pumps with the T10604R
Applications:
- Distribution/Control Panel
- Motor Control
- Pump Control
Specifications:
| Input Voltage Range(s) | 208-277 VAC, 60 Hz | Number Of Circuits | 2 |
| Resistive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz | Switch Type | DPST |
| Enclosure Type | Outdoor type 3R plastic | Maximum Power Consumption (W) | 3 W |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz | Warranty Period | 1-Year limited |
| Inductive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz | Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Knockout Dimensions Back | (1) combination 1/2″ – 3/4″ and (1) 3/4″ – 1″ | Knockout Dimensions Bottom | (5) combination 1/2″ – 3/4″ and (2) combination 3/4″ – 1″ |
| Knockout Dimensions Left | (1) combination 1/2″ – 3/4″ | Knockout Dimensions Right | (1) 1 3/4″ x 2 3/4″ |
| Mechanism Supply Voltage | 240/240 VAC, 60 Hz | Mechanisms | (2) T104M |
| Motor (Three-Phase) | 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz | Pilot Duty (NO) | 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz | Tungsten (NO) | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz |
| Tungsten Range(s) | 40 A, 120-240 VAC, 60 Hz | Operating Temperature Max (°C) | 54 |
| Operating Temperature Max (°F) | 130 | Operating Temperature Min (°C) | -40 |
| Operating Temperature Min (°F) | -40 | Product Depth (in) | 4.75 |
| Product Depth (mm) | 120.7 | Product Height (in) | 12.875 |
| Product Height (mm) | 327 | Product Width (in) | 10.875 |
| Product Width (mm) | 276.2 | Unit Carton Height (in) | 5.63 |
| Unit Carton Length (in) | 13.81 | Unit Carton Weight (lb) | 11.376 |
| Unit Carton Width (in) | 12.065 |
Specs
Input Voltage Range(s)208-277 VAC, 60 HzNumber Of Circuits2
Resistive40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 HzSwitch TypeDPST
Enclosure TypeOutdoor type 3R plasticMaximum Power Consumption (W)3 W
Resistive Load Ratings Ranges40 A, 120-240 VAC, 60 HzWarranty Period1-Year limited
Inductive40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 HzInductive Load Ratings Ranges40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back(1) combination 1/2″ – 3/4″ and (1) 3/4″ – 1″Knockout Dimensions Bottom(5) combination 1/2″ – 3/4″ and (2) combination 3/4″ – 1″
Knockout Dimensions Left(1) combination 1/2″ – 3/4″Knockout Dimensions Right(1) 1 3/4″ x 2 3/4″
Mechanism Supply Voltage240/240 VAC, 60 HzMechanisms(2) T104M
Motor (Three-Phase)2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 HzPilot Duty (NO)1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges1000 VA, 120-240 VAC, 60 HzTungsten (NO)40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s)40 A, 120-240 VAC, 60 HzOperating Temperature Max (°C)54
Operating Temperature Max (°F)130Operating Temperature Min (°C)-40
Operating Temperature Min (°F)-40Product Depth (in)4.75
Product Depth (mm)120.7Product Height (in)12.875
Product Height (mm)327Product Width (in)10.875
Product Width (mm)276.2Unit Carton Height (in)5.63
Unit Carton Length (in)13.81Unit Carton Weight (lb)11.376
Unit Carton Width (in)12.065
Dimension
Product Depth (in)4.75
Product Height (in)12.875
Product Width (in)10.875
