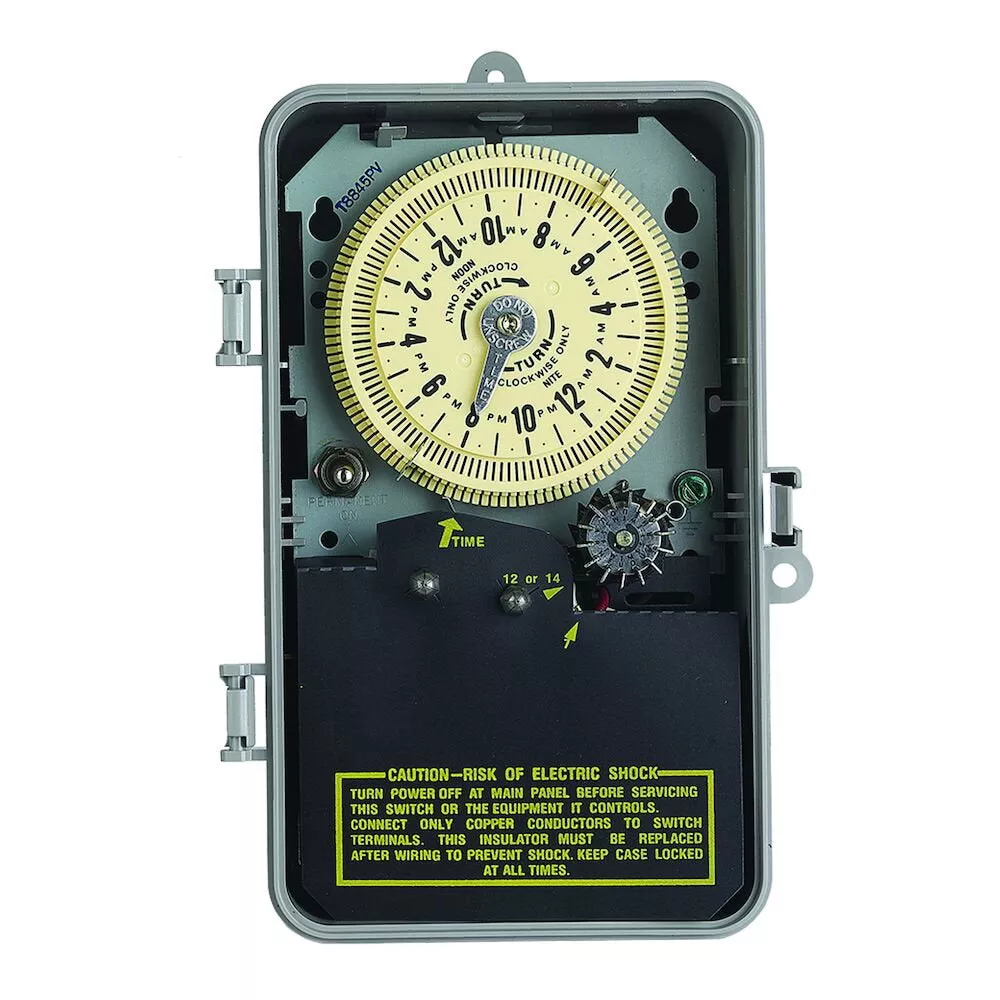

These irrigation timers are designed to permit one to 44 “ON” operations every 24 hours and provide watering increments down to 12 minutes or up to 20 hours and 45 minutes to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14-day skipper for maximum water conservation and odd/even day compliance.
Features:
- Up to 44 ON/OFF settings per day
- Water metering increments from 12 minutes to 20 hours and 45 minutes
- 14-Day skipper enables irrigation to be omitted on selected day(s)
- Provides for every other day operation
- ON/OFF/AUTO switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial
- Type 3R plastic indoor/outdoor enclosure
Applications:
- Agriculture Feeders
- Greenhouse Misting Control
Specifications:
| Input Voltage Range(s) | 24 VAC, 60 Hz | Maximum ON/OFF Operations | 44 |
| Mechanism Type | Analog/Mechanical | Switch Type | SPST |
| Enclosure Type | Indoor/outdoor type 3R plastic | Minimum ON/OFF Times | 12 min |
| Maximum ON/OFF Times | 20 hours, 45 minutes | Warranty Period | 1-Year limited |
| Amps Per Pole | 20 VA | Clock Motor Voltage | 110/125 VAC, 60 Hz |
| Load Voltage | 24 VAC, 60 Hz | Motor (Three-Phase) | 24 VAC, 60 Hz |
| Number of Trippers Included | 12 | Tripper Actuating Time | 12 min |
| Operating Temperature Max (°C) | 54 | Operating Temperature Max (°F) | 130 |
| Operating Temperature Min (°C) | -40 | Operating Temperature Min (°F) | -40 |
| Product Depth (in) | 4 | Product Depth (mm) | 101.6 |
| Product Height (in) | 10 | Product Height (mm) | 254 |
| Product Width (in) | 6.5 | Product Width (mm) | 165.1 |
| Unit Carton Height (in) | 4.25 | Unit Carton Length (in) | 11.75 |
| Unit Carton Weight (lb) | 3.243 | Unit Carton Width (in) | 7.31 |
Specs
Input Voltage Range(s)24 VAC, 60 HzMaximum ON/OFF Operations44
Mechanism TypeAnalog/MechanicalSwitch TypeSPST
Enclosure TypeIndoor/outdoor type 3R plasticMinimum ON/OFF Times12 min
Maximum ON/OFF Times20 hours, 45 minutesWarranty Period1-Year limited
Amps Per Pole20 VAClock Motor Voltage110/125 VAC, 60 Hz
Load Voltage24 VAC, 60 HzMotor (Three-Phase)24 VAC, 60 Hz
Number of Trippers Included12Tripper Actuating Time12 min
Operating Temperature Max (°C)54Operating Temperature Max (°F)130
Operating Temperature Min (°C)-40Operating Temperature Min (°F)-40
Product Depth (in)4Product Depth (mm)101.6
Product Height (in)10Product Height (mm)254
Product Width (in)6.5Product Width (mm)165.1
Unit Carton Height (in)4.25Unit Carton Length (in)11.75
Unit Carton Weight (lb)3.243Unit Carton Width (in)7.31
Dimension
Product Depth (in)4
Product Height (in)10
Product Width (in)6.5
