Install Manual

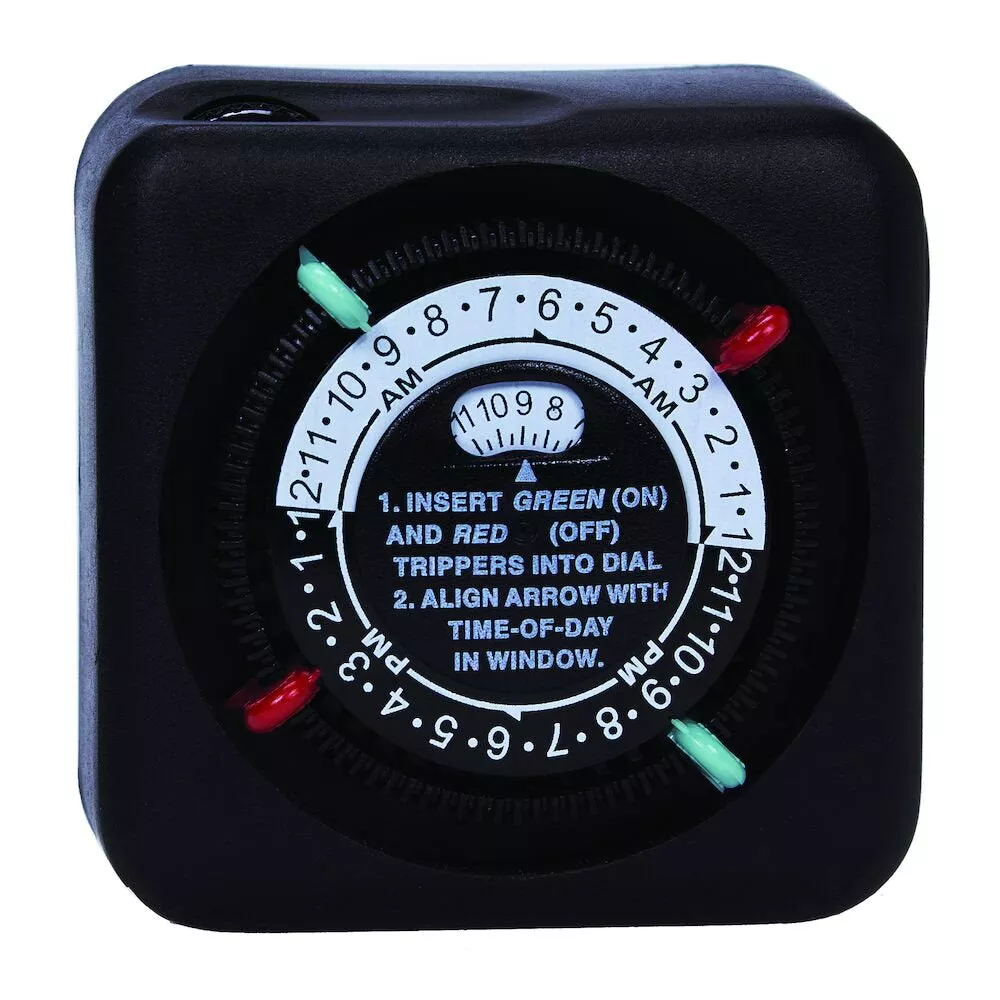

Plug-in timer rated for installation into a Type 3R outdoor low voltage transformer enclosure. Simple implementation of ON/OFF schedule.
Features:
- 2 ON/2 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers
- Minimum 30-min ON/OFF time
- Rated for outdoor use in a Type 3R outdoor enclosure
- Manual override dial
Applications:
- Air Movement & Ventilation
- Indoor Lighting Control
- Landscape Water Control
- Outdoor Lighting Control
Specifications:
| Color | Black | Input Voltage Range(s) | 125 VAC, 60 Hz |
| Mechanism Type | Analog/Mechanical | Resistive | 9 A (1125 W), 125 VAC, 60 Hz |
| Usage Environments | Outdoor | Minimum ON/OFF Times | 30 min |
| Plug Configurations | 1-15 | Number of Plugs | 1 |
| ON/OFF Operations | 2 | Warranty Period | 1-Year limited |
| Inductive | 9 A, 125 VAC, 60 Hz | Product Depth (in) | 2 |
| Product Depth (mm) | 51 | Product Height (in) | 3 1/8 |
| Product Height (mm) | 79 | Product Width (in) | 3 |
| Product Width (mm) | 76 | Unit Carton Height (in) | 4 |
| Unit Carton Length (in) | 4 | Unit Carton Weight (lb) | 0.55 |
| Unit Carton Width (in) | 3 |
Specs
ColorBlackInput Voltage Range(s)125 VAC, 60 Hz
Mechanism TypeAnalog/MechanicalResistive9 A (1125 W), 125 VAC, 60 Hz
Usage EnvironmentsOutdoorMinimum ON/OFF Times30 min
Plug Configurations1-15Number of Plugs1
ON/OFF Operations2Warranty Period1-Year limited
Inductive9 A, 125 VAC, 60 HzProduct Depth (in)2
Product Depth (mm)51Product Height (in)3 1/8
Product Height (mm)79Product Width (in)3
Product Width (mm)76Unit Carton Height (in)4
Unit Carton Length (in)4Unit Carton Weight (lb)0.55
Unit Carton Width (in)3
Dimension
Product Depth (in)2
Product Height (in)3 1/8
Product Width (in)3
