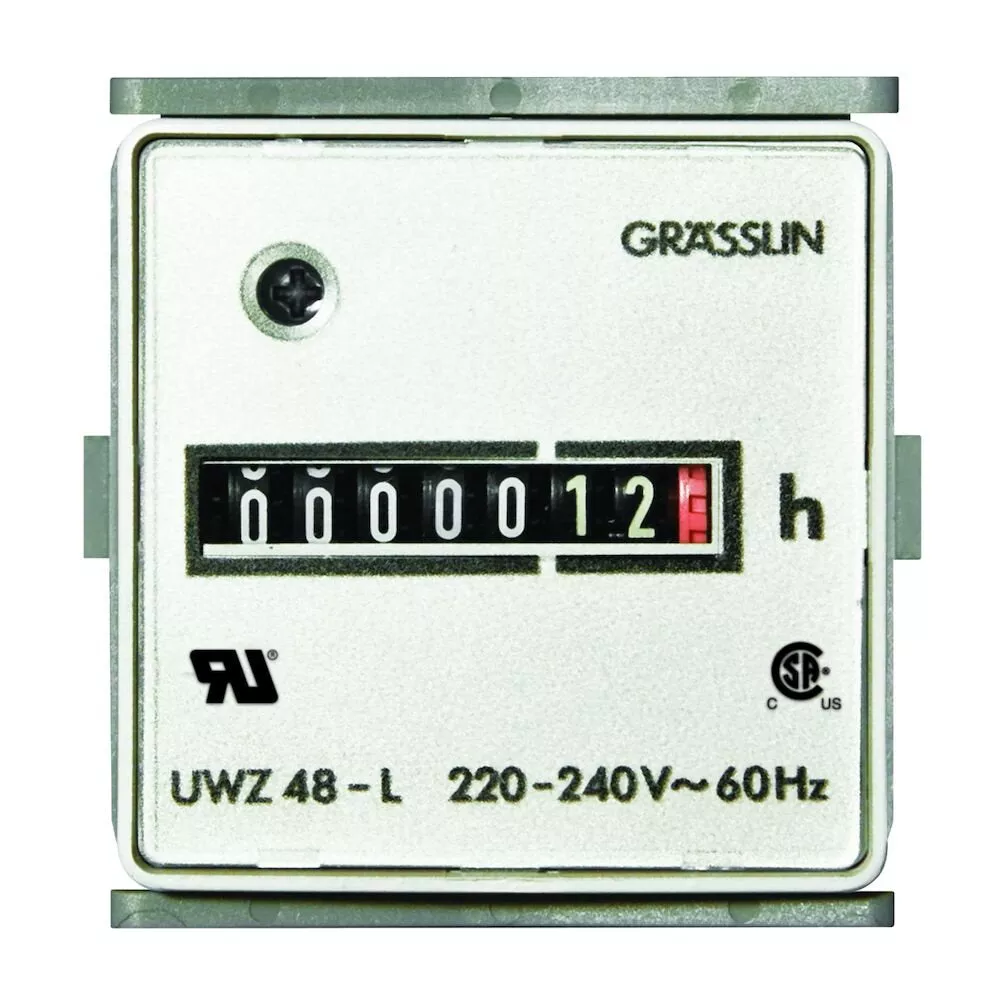

Intermatic – UWZ48E-24U – AC Hour Meter

Original price was: $15.50.Current price is: $8.91.

Sale!
SKU: UWZ48E-24U Category:
Share

Spec Sheet

Flush mounted with bracket, the UWZ48E unit fits into a 1.79″ x 1.79″ (45.5 x 45.5 mm) cutout. The thickness of the panel for flush mounting can be up to .35″ (9 mm). The unit is secured in position by a plastic slip-on retaining bracket. The unit also fits square or round openings for 72 mm with optional 72 mm bezel.

Applications:

  • Distribution/Control Panel
  • Monitoring

Specifications:

Color Light Gray Input Voltage Range(s) 24 VAC, 60 Hz
Mounting Options Flush Mechanical Movement Synchronous
Warranty Period 1-Year limited Wiring Option 1/4″ Spade w/screw clamp
Category Hour MeterWeb Digits Coloring (Hours) White on Black
Digits Coloring (Tenths) Yellow on Black Environmental Rating IP20
Hour Meter Material Plastic RoHS Certification Yes
Operating Temperature Max (°C) 72 Operating Temperature Max (°F) 160
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 1.65 Product Depth (mm) 49
Product Height (in) 2.13 Product Height (mm) 54
Product Width (in) 1.89 Product Width (mm) 48
Unit Carton Height (in) 2.25 Unit Carton Length (in) 3.25
Unit Carton Weight (lb) 0.202 Unit Carton Width (in) 3.25

Specs

ColorLight GrayInput Voltage Range(s)24 VAC, 60 Hz
Mounting OptionsFlushMechanical MovementSynchronous
Warranty Period1-Year limitedWiring Option1/4″ Spade w/screw clamp
CategoryHour MeterWebDigits Coloring (Hours)White on Black
Digits Coloring (Tenths)Yellow on BlackEnvironmental RatingIP20
Hour Meter MaterialPlasticRoHS CertificationYes
Operating Temperature Max (°C)72Operating Temperature Max (°F)160
Operating Temperature Min (°C)-40Operating Temperature Min (°F)-40
Product Depth (in)1.65Product Depth (mm)49
Product Height (in)2.13Product Height (mm)54
Product Width (in)1.89Product Width (mm)48
Unit Carton Height (in)2.25Unit Carton Length (in)3.25
Unit Carton Weight (lb)0.202Unit Carton Width (in)3.25

Dimension

Product Depth (in)1.65
Product Height (in)2.13
Product Width (in)1.89
