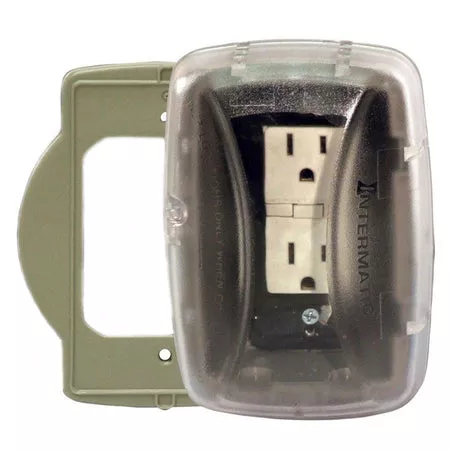

Intermatic WP3103C Plastic In-Use Weatherproof Cover, Single-Gang, Vrt/Hrz, 2.75″ Clear, 3/0 Adapter Plate
Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Features:
- Complies with 2020 NEC Article 314.15 for damp and wet locations
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1?8″ (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
- Lockable hasp: All models accept up to 1?4″ (6 mm) dia shank, except WP3100C & WP3103C accept up to 1?8″ (3 mm) dia shank
- Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
- Max cord size: (2) 14 AWG or (1) 12 AWG
- Mounts vertically or horizontally
- Warranty: 1-year limited
Applications:
- Receptacle Protection
Specifications:
| Box Type | Single | Color | Clear |
| Is Extra-Duty Rated | No | Enclosure Type | Outdoor type 3R plastic |
| Hinge Direction | Vertical/Horizontal | Warranty Period | 1-Year limited |
| Accepted Cord Size Max | 1×12 AWG, 2×14 AWG | Cover Gasket | 3mm |
| Insert Types Included | WP17 | Material | UV Stabilized Polycarbonate |
| Trade Size in | Other | Weatherproof Cover Material | UV Stabilized Plastic |
| Product Depth (in) | 2 3/4 | Product Depth (mm) | 70 |
| Product Height (in) | 5 3/4 | Product Height (mm) | 146.6 |
| Product Width (in) | 4 | Product Width (mm) | 103.1 |
| Unit Carton Height (in) | 2.639 | Unit Carton Length (in) | 5.759 |
| Unit Carton Weight (lb) | 0.399 | Unit Carton Width (in) | 4.069 |
Specs
Box TypeSingleColorClear
Is Extra-Duty RatedNoEnclosure TypeOutdoor type 3R plastic
Hinge DirectionVertical/HorizontalWarranty Period1-Year limited
Accepted Cord Size Max1x12 AWG, 2×14 AWGCover Gasket3mm
Insert Types IncludedWP17MaterialUV Stabilized Polycarbonate
Trade Size inOtherWeatherproof Cover MaterialUV Stabilized Plastic
Product Depth (in)2 3/4Product Depth (mm)70
Product Height (in)5 3/4Product Height (mm)146.6
Product Width (in)4Product Width (mm)103.1
Unit Carton Height (in)2.639Unit Carton Length (in)5.759
Unit Carton Weight (lb)0.399Unit Carton Width (in)4.069
Dimension
Product Depth (in)2 3/4
Product Height (in)5 3/4
Product Width (in)4
