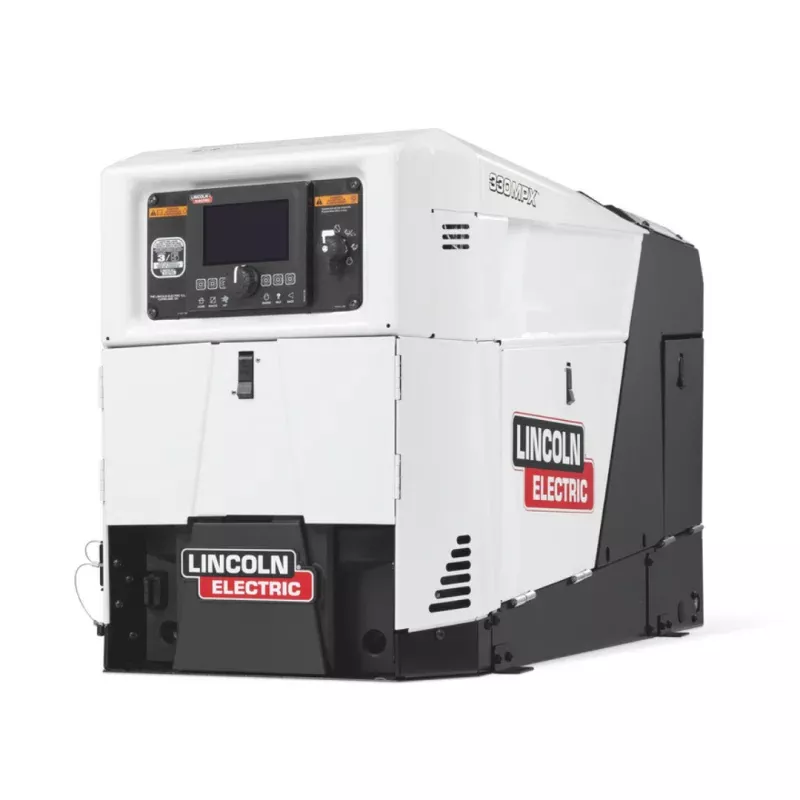

Lincoln Electric RANGER AIR 330MPX Multi-Function Engine Drive

Lincoln Electric RANGER AIR 330 MPX Multi-Function Engine Drive

Versatility With Unparalleled Performance

The Ranger Air 330MPX multi-function engine drive was designed for the operator who faces the unexpected every day.

Air Compressor

The Vanair rotary screw air compressor delivers instant 40CFM @150 PSI,
generating up to 30% more air power compared to other machines in its class.
Operators can power large toolsup to a 1-inch impact wrench, and inflate
tires faster to complete jobs in less time.

Generator

10KW of clean continuous AC generator power accommodates a variety of
tools and equipment, allows you to power tools while welding and with less
than 5% total harmonic distortion (THD) you can operate sensitive electronics,
like laptops.

Battery Jump Assist and Battery Charge

Capability to jump and charge 12V and 24V batteries on the jobsite. Get
equipment started and keep productivity high with 330A for cold cranking assist.

Multi-Process Welding

Stick, TIG, MIG, Flux-Cored and direct connect spool gun
with a 330A/28V/100% duty cycle so the operator can tackle a variety
of applications.

Advanced Weld Modes

Gouge, pipe, pulsed TIG and pulsed spool gun modes give the operator more
control and flexibility when taking on welding jobs

Ranger AIR 330MPX Technical Specifications

Product Name // Part Number Ranger Air 330MPX // K5239-1 Battery Jump Assist 330A Battery Charge 25A or 50A IEC Rating CC-Stick: 292A/31.7V/100%
Touch-Start TIG: 325A/23V/100%
CV-Wire: 312A/29.6V/100% Non-IEC Rating 330A/28V/100% Output Range CC-Stick: 35A – 330A
Touch-Start TIG: 25A – 330A
CV-Wire: 35A – 330A Generator AC Power 11,500 Watts Peak
10,000 Watts Continuous Voltage Output 60 Hz Single Phase
39.5 @ 240V
40A @ 120V each branch circuit Receptacles Four 120V Receptacles (20A Total)
One 120/240 Volt AC Full KVA Receptacle
One240 Volt AC Receptacle Dimensions 26″ x 20″ x 48″ (660 mm x 508 mm x 914 mm)
To Top of Exhaust: 29″ (737 mm) Weight 565 lbs (256 kg) Engine Model Kohler OHV Command ECH749, 2 Cylinder, 4 Cycle, Air-Cooled, Gasoline Engine Horsepower & Displacement 26.5 HP @ 3600 RPM
45 cu in (725 cc) Fuel Capacity 11 Gallons (41.6 Liters) Oil Capacity 0.5 Gallons (1.8 Liters) Operating Speeds Full Load: 3,600 RPM
High Idle: 3,600 RPM
Low Idle: 2,500 RPM Fuel Consumption Full Load: 1.9 Gals/Hr (7.0 L/Hr)
High Idle: 0.6 Gals/Hr (2.4 L/Hr)
Low Idle: 0.5 Gals/Hr (1.8 L/Hr) Compressor Model Vanair Single Stage, Oil Injected Rotary Screw Compressor Delivery 40 CFM @ 150 PSI Maximum System Pressure 150 PSI Compressor Protection Safety Relief Valve @ 225 PSI
High Temperature Automatic Shutdown at 250F Compressor Capacity 0.75 Gallons (2.84 Liters)
