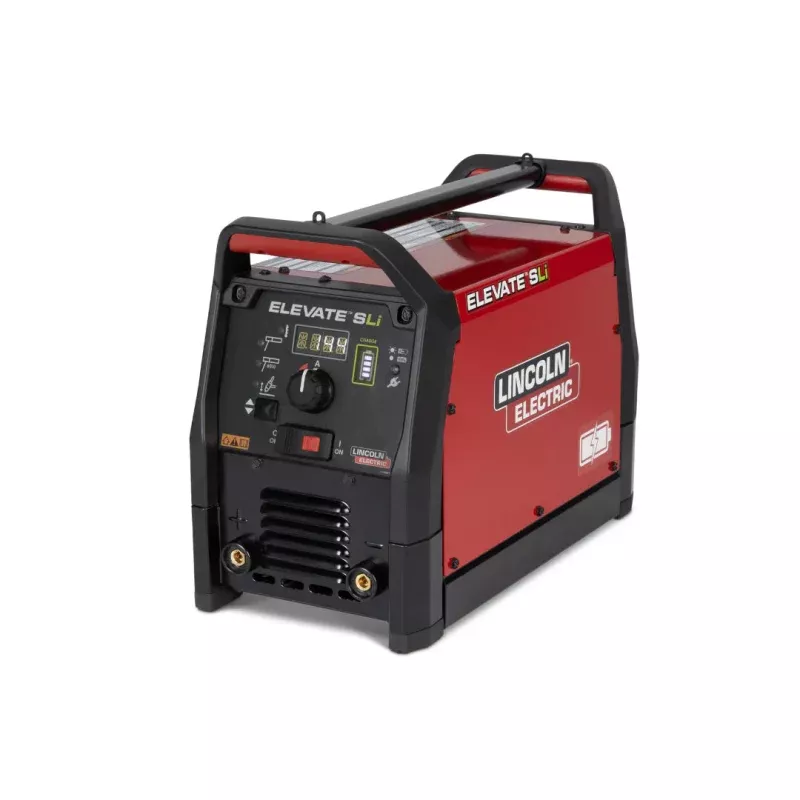

Lincoln Elevate SLi Battery Powered Welder

Lincoln Elevate SLi Battery Powered Welder

Designed, built, and tested to deliver the industrys leading battery powered welder,
the ELEVATE SLi combines unlimitedportability with the trusted, reliable arc
performance you expect fromLincoln Electric.

Engineered to withstand rugged jobsite conditions, this durable and lightweight system offers up a powerful cordless Stick & TIG welder that ELEVATEs your operators versatility on the jobsite

• Portability -Welcome to the world of convenience with ELEVATE SLi.
  This cordless design with internal rechargeable batterytechnology is designed to be lightweight and portable,allowing you to take it on a construction site or repairequipment in the field. The ELEVATE SLi is always thereto help you get the job done.
• Arc Performance -Thanks to its premium performance utilizing Lincoln Electrics
  proven Chopper Technology, ELEVATE SLi delivers superiorDC arc welding performance for both Stick and Touch StartTIG welding. Featuring cellulosic capability with the ability to handle up to a 5/32 in. (4.0 mm) diameter electrodes, thiswelding machine allows both whip and drag techniques for
  a wider range of construction and fabrication applications.

• Straightforward & Simple – ELEVATE SLi has an impressive all-in-one internal chargingsystem that eliminates the need for an external charger,multiple battery packs, or custom power cords. This chargingsystem is designed to regulate the charging processand prevent the battery from being overcharged while
  continuously monitoring its status.

• Durability– Not all lithium-ion battery technologies are the same. ELEVATE SLi uses lithium iron phosphate battery technology,which offers a longer lifespan, improved discharge and chargeefficiency, and increased safety. Built to withstand challengingwelding environments with an IP23S rating and fan-as-neededcircuitry, ensuring long-lasting performance

E6010 E6013 E7018 Electrodes Consumed Amps Electrodes Consumed Amps Electrodes Consumed Amps 3/32 x 12 in 21.7 60 16.8 75 12.3* 90 1/8 x 14 in 9.2 90 9.4 110 8.1 120 5/32 x 14 in 6.3 120 5.8 140 5.3 140 *3/32 x 14 in

Product Name Elevate SLi Battery Powered Welder Welding Processes Stick (SMAW), DC TIG (GTAW) Input Voltage (Charging/Hybrid) 120/1/60Max 6A Welding Output Amps Stick: 20-145A
TIG: 4-145A Output Current DC – CC, Pulse TIG Aluminum TIG Remote Control Connector Dimensions 14 x 11 x 20″ Weight 33 lb. Warranty 3-Year Parts & Labour

Available Options and Part Numbers

• Elevate SLi Machine Package – K4706-1
• Elevate SLi Machine Package with Hard Rolling Case– K5622-1
• Elevate SLi TIG Package with Hard Rolling Case– K5624-1

Please see this link for the Sprinter 180Si TIG Packages

All Packages Include

• ELEVATE SLi Battery Powered Welder
• 200A Industrial Electrode Holder, Cable and TwistMate Plug (K5612-1)
• Work Cable and Clamp with Twist Mate Plug (K5482-1)
• Fully Adjustable Shoulder Strap (KP5656-1)
• 120V Input Cord, 8 ft. (2.4m) (KP5655-1)

TIG Package Includes

• Rolling Carrying Case (K5548-1)
• Caliber 17 Series TIG Torch -Flex/Valve 12.5 ft. (K4841-17FV-1)
• Small Twist Mate Torch Adapter (K960-2)
• Caliber17/18/26 Series TIG TorchExpendables Kit – 1/16 in. -1/8 in. (KP4760-HD)
• Single-Stage Flowgauge RegulatorAr5-30-580 (3000369)

Full Product Data Sheet
