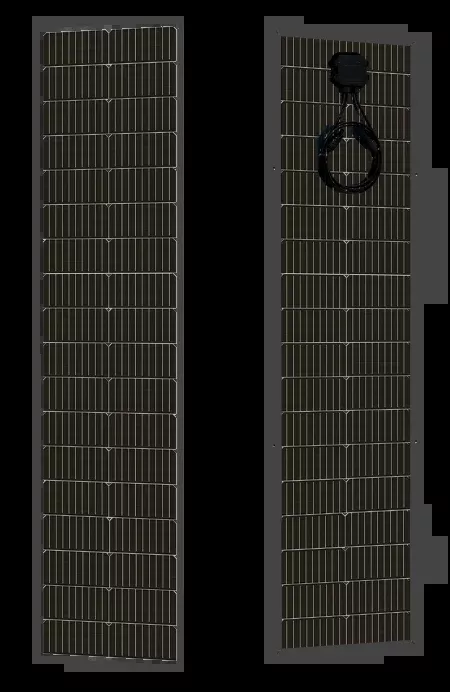

Lumera 12V 140W “Long & Skinny” Solar Panel

About this product

Lumera’s 140W “Long and Skinny” BiFacial solar panel combines sleek design with impressive performance, and is specifically made for tight spots on RVs and Boats. Thanks to internal reflection and backside power generation, it delivers up to 30% more energy, maximizing output from every square foot. Featuring advanced PERC cell technology, each panel is crafted through a meticulous four-step quality control process and cutting-edge robotics—proudly manufactured right here in British Columbia, Canada. Looking to support local? We’d be honored to earn your business! Find a dealer from our list to make a purchase. Our panels are competitively priced, and our workmanship and power production warranties stand above the rest. See the Spec Sheet in the product gallery for full details.

Key Features

• Bifacial PERC monocrystalline cells for enhanced energy capture
• Durable, low-profile design with anodized aluminum frame and tempered glass
• MC4 connectors with long leads for easy hook-up
• Manufactured in British Columbia with stringent quality control
• Industry-leading warranty: up to 25 years output, including stretch performance guarantees

Technical Specification

Rated Power (Pmax)140WMax Power Voltage (Vmp)19.8 VMax Power Current (Imp)7.05 AOpen‑Circuit Voltage (Voc)22 VShort‑Circuit Current (Isc)8.2 ADimensions3 × 39 × 171 cmWeight~20 lb (9.07kg)Frame/GlassClear anodized aluminum/low‑iron tempered glassConnectorsMC4 with long leads approx. 900 mm (36in)Max System Voltage/Series Fuse600 VDC / 15 AWarranty5 yr @95%, 10 yr @90%, 25 yr @80% output + 5 yr workmanship
