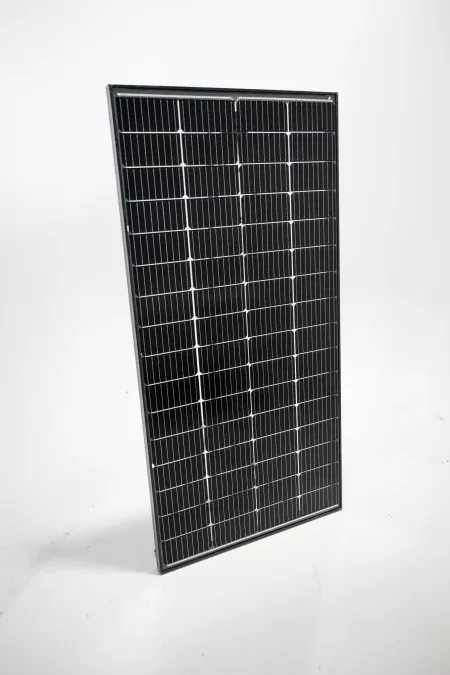

Lumera 24V 220W Solar Panel

About this product

The Lumera 220W Bifacial Solar Panel is a sleek, high-performance solution for mobile and off-grid installations. Made in Western Canada, this panel features bifacial PERC cells that harvest sunlight from both sides—up to 30% more energy gain in reflective environments. It’s designed to endure harsh marine and RV conditions while delivering superior efficiency and reliability.

Key Features

• Bifacial PERC monocrystalline cells for enhanced energy capture
• Durable, low-profile design with anodized aluminum frame and tempered glass
• MC4 connectors with long leads for easy hook-up
• Manufactured in British Columbia with stringent quality control
• Industry-leading warranty: up to 25 years output, including stretch performance guarantees

Technical Specification

Rated Power (Pmax)220 WMax Power Voltage (Vmp)37.56 VMax Power Current (Imp)6.12 AOpen‑Circuit Voltage (Voc)43.72 VShort‑Circuit Current (Isc)6.71 ADimensions56.5″ × 30.5″ × 1.38″ (1410 × 700 × 35 mm)Weight~24 lb (10.94 kg)Frame/GlassClear anodized aluminum/low‑iron tempered glassConnectorsMC4 with long leads approx. 900 mm (36in)Max System Voltage/Series Fuse600 VDC / 15 AWarranty5 yr @95%, 10 yr @90%, 25 yr @80% output + 5 yr workmanship
