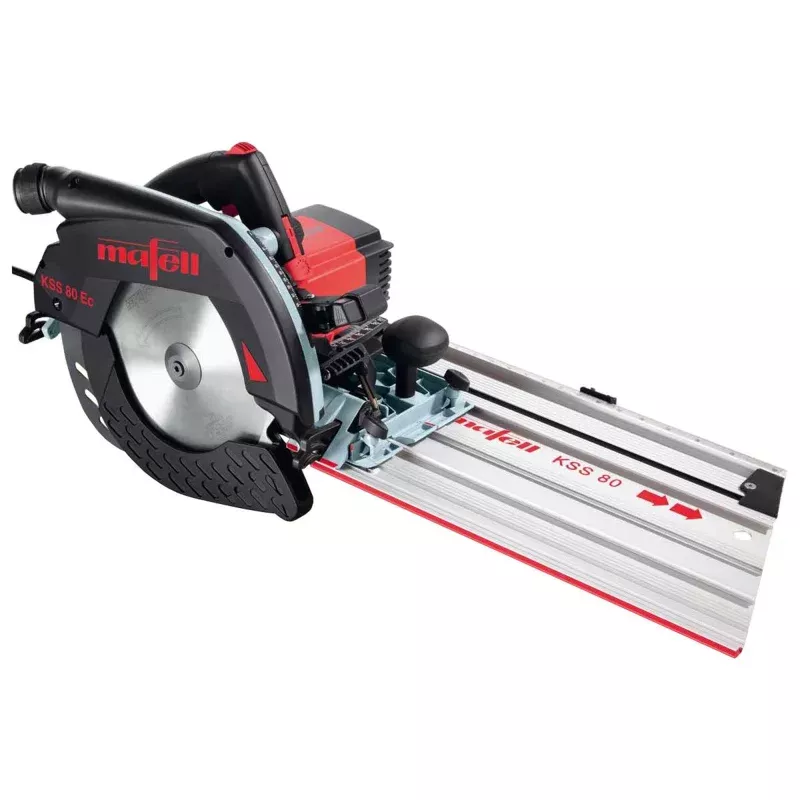

The Mafell KSS 80Ec/370 Cross-Cutting System combines the power of a full-size circular saw with the precision of a guided cross-cut system, giving professional carpenters one versatile tool for cross-cutting, ripping, and miter cutting. Built around Mafell’s high-performance CUprex motor and paired with the integrated 370mm guide track, it delivers clean, accurate cuts up to 3-3/16″ deep while remaining portable enough for use directly at the jobsite. Instead of carrying material back and forth to a stationary saw, you can bring precision cutting to the workpiece, saving valuable time and reducing fatigue.
The KSS 80Ec/370’s innovative guide system makes repeatable accuracy effortless. Simply register the guide against the edge of your material and push the saw through the cutno need to carefully follow a pencil line by eye. The adjustable Smart Stop allows for perfectly square 90 cuts as well as precise miters up to 60, making it ideal for framing, timber construction, stair building, and finish carpentry.
A non-slip friction pad keeps the guide securely in place without clamps for many applications, while the splinter guard produces clean, tear-out-free cuts, even when making repeated angled cuts in plywood, hardwood, or finished panels.
Whether you’re cutting heavy structural lumber, sizing sheet goods, or producing accurate finish cuts on-site, the KSS 80Ec/370 delivers the portability of a handheld circular saw with the confidence and consistency of a dedicated cross-cut station. The result is faster setup, exceptional cut quality, and the flexibility to tackle everything from rough construction to fine woodworking with a single tool.
[TABS]
Features
- Up to 3-3/16″ cutting depth on 14-9/16″ length track (excellent for tenon shoulder cuts)
- Powerful 17 amp motor
- Clearly graduated scale for easy angle adjustments
- Tilts up to 60
- FLIPPKEIL Riving Knife is spring-loaded and retracts during plunge cuts for improved safety
Specs
Cutting depth at 0 (on track): 0 to 3-3/16″
Cutting depth at 45 (on track): 0 to 2-3/16″
Cutting depth at 60 (on track): 0 to 1-1/2″
Cutting depth at 0 (off track): 0 to 3-7/16″
Tilt range: 0 to 60
Blade diameter: 9-5/16″
No load speed: 2,250 to 4,400 RPM
Motor: 120V / 60 Hz
Current: 17 A
Weight with track: 19.8 lbs.
Includes
- Guide Rail (370mm)
- 12T Ripping Carbide Blade
- Parallel Guide Fence
- Hose Connector
- Allen Key
- 13.1 ft. Cord
- L-MAX Carrying Case
