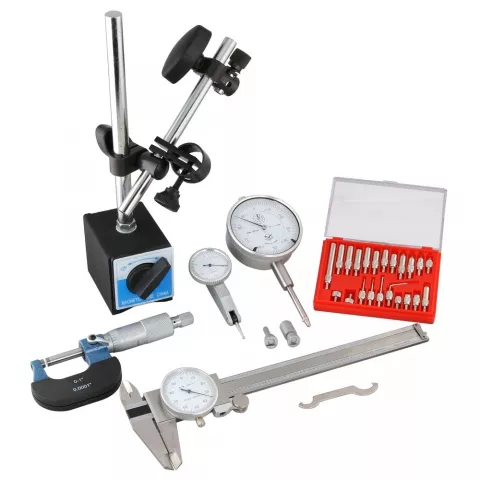

Measurement Inspection Kit, 6-Piece

• 1″ Dial indicator, magnetic base and point set
• 0-30-0 Dial test indicator
• 0-1″ micrometer
• 6″ Dial caliper
• Plastic case

This set includes all the basic precision measuring tools.

The micrometer has a range of 0-1″ and a resolution of 0.0001″. An adjustment wrench is included.

The dial caliper has a range of 0-6″ and a resolution of 0.001″.

The dial test indicator has a range of 0.030″ in either direction and a resolution of 0.0005″. It includes 5/32″ and 3/8″ diameter posts, dovetails on the back and end, and a 0.080″ diameter point.

The dial indicator has a range of 0-1″ and a resolution of 0.001″. Each revolution is 0.100″, indicated by the revolution counter. There is a mounting lug on the back of the case.

The magnetic base has on on-off switch for the magnet and incorporates a fine adjustment feature.

The point set includes 22 of the most popular points. All have 4-48 threads for use in AGD 1, 2, 3, and 4 indicators.
