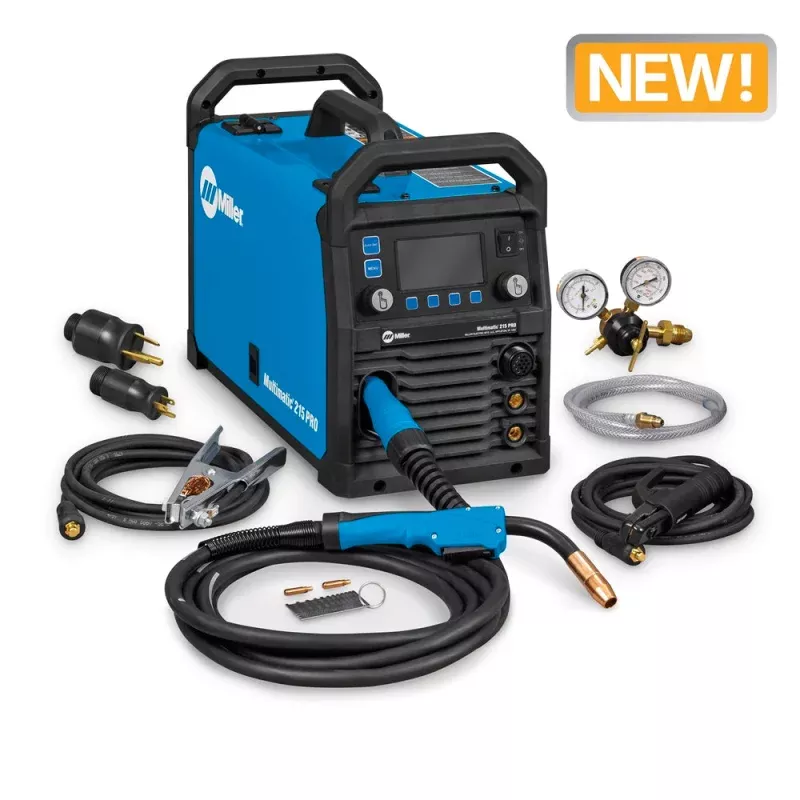

Miller Multimatic 215 PRO Multiprocess Welder
120/240V MIG, Stick and DC TIG Welder. Welds up to 3/8″ steel and aluminum. Featuring advanced technologies like USB-enabled updates, Auto-Set, higher duty cycle, 15 MIG gun, and dinse connectionsbuilt to keep you welding all day, every day.
Key Features
|
| Multiprocess |
Includes MIG, flux-cored, DC TIG, and DC stick capabilities. |
| Auto-Set |
Predefined settings for multiple materials and processes to help you get welding quickly. |
| Color LCD Display |
Highly visible interface for adjusting parameters and viewing process selections. |
| Smooth-Start |
Provides a smooth, spatter-free start for high-quality welds. |
| Multi-Voltage Plug (MVP) |
Allows connection to 120 V or 240 V receptacles without tools. |
| Angled Drive System |
Cast-aluminum system with calibrated tension knob for consistent wire feeding. |
| Quick Select Drive Roll |
Features three grooves for different wire sizes and types. |
| Fan-On-Demand |
Cooling system operates only when needed to reduce noise and energy use. |
| USB Upgradeable |
Software can be updated to expand capabilities without mechanical modifications. |
| Gas Detect |
Detects shielding gas presence and displays alerts for supply issues. |
Available Packages and Part Numbers
|
| Multimatic 215 PRO (Base) |
Multimatic 215 PRO with Welding Cart |
Multimatic 215 PRO with TIG Kit |
| 907840 |
951000074 |
951000213 |
Multimatic 215 PRO (120/240 V)
15 ft. MDX-100 MIG gun
15 ft. electrode holder & 15 ft. work cable
6.5 ft. cord with MVP 120 V/240 V plugs
Flow gauge regulator & gas hose
Quick Select Drive roll (0.030″)
Contact tips (0.030″) |
Multimatic 215 PRO (120/240 V)
15 ft. MDX-100 MIG gun
15 ft. electrode holder & 15 ft. work cable
6.5 ft. cord with MVP 120 V/240 V plugs
Flow gauge regulator & gas hose
Quick Select Drive roll (0.030″)
Contact tips (0.030″)
Running Gear/Cylinder Rack (301239) |
Multimatic 215 PRO (120/240 V)
15 ft. MDX-100 MIG gun
15 ft. electrode holder & 15 ft. work cable
6.5 ft. cord with MVP 120 V/240 V plugs
Flow gauge regulator & gas hose
Quick Select Drive roll (0.030″)
Contact tips (0.030″)
TIG Contractor Kit w/ Wireless Foot Control (301917)
|
Multimatic 215 PRO Specifications
|
| Input Power |
120 or 240 V, single-phase, 50/60 Hz. |
| Welding Amperage Range |
MIG: 30230 A; TIG: 20210 A; Stick: 30200 A. |
| MIG Rated Output (120 V) |
110 A at 19.5 VDC, 60% duty cycle. |
| MIG Rated Output (240 V) |
160 A at 22.0 VDC, 60% duty cycle
215 A at 24.8 VDC, 30% duty cycle. |
| Materials |
Steel, Stainless, Aluminum |
| Aluminum TIG |
Not Available |
| Rated Material Thickness |
Mild Steel 24 ga. – 3/8 in. (MIG)
Mild Steel 24 ga. – 1/4 in. (TIG)
Mild Steel 16 ga. – 3/8 in. (Stick)
Aluminum 18 ga. – 3/8 in (MIG) |
| Wire Feed Speed |
60600 ipm (1.515.2 m/min.). |
| Max. Open-Circuit Voltage |
57 VDC. |
| Dimensions |
H: 14.625 in. (372 mm)
W: 9.75 in. (248 mm)
D: 20 in. (508 mm). |
| Net Weight |
35 lb. (15.9 kg). |
Full Product Data Sheet | See All Multimatic 215 PRO Accessories
