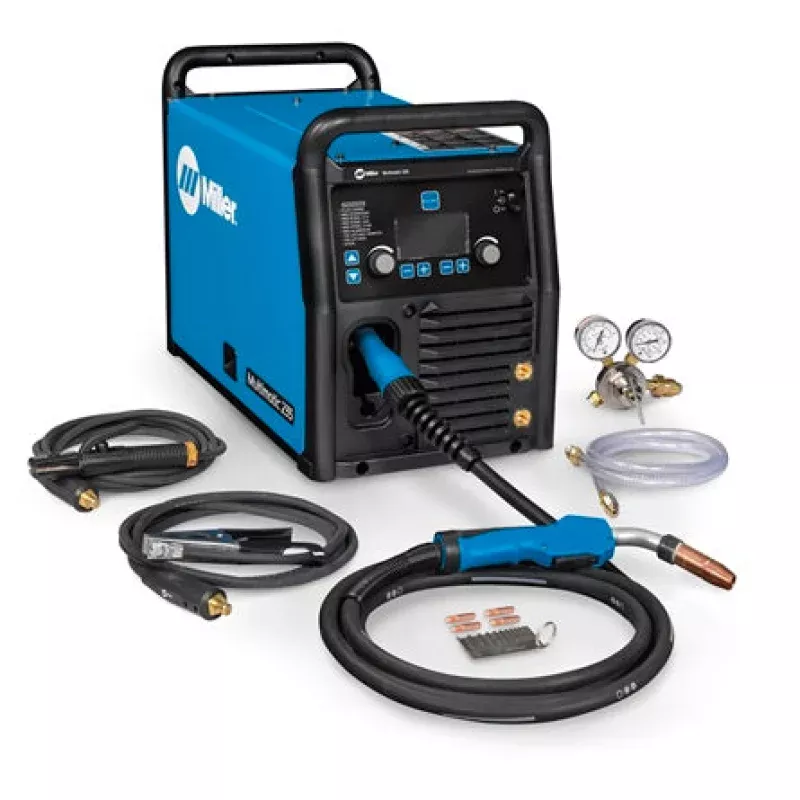

Miller Multimatic 235 Multiprocess Welder

Miller Multimatic 235 Multiprocess Welder

Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence.

What’s Included (MIG Package907780)

• Power source with 7 ft. (2.1 m) industrial power cord
• 15 ft. (4.5 m) 250-amp MDX-250 MIG gun with AccuLock MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
• 10 ft. (3 m) cable with electrode holder and 50 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• 0.030/.035 in. (0.8/0.9 mm) reversible drive rolls
• Extra contact tips
• Material thickness gauge


  TIG Package (951847) Adds:

• EZ-Latch dual cylinder running gear with elevated gun and cable rack
• Multimatic 235/255 TIG kit
• Two chains to secure gas cylinders

Product Name // Part Number Miller Multimatic 235 // 907780 Welding Processes MIG (GMAW), Flux Core (FCAW), TIG (GTAW), Stick (SMAW) Input Voltage 208V – 230V, Single Phase Input Current 20A Welding Output Amps (230V) MIG: 30 – 235A
TIG: 20 – 210A
Stick: 30 – 200A Output Current DC – CC/CV Aluminum TIG Spool GunReady – Spoolmate 150 Dimensions

H: 19.24 in. (489 mm)
W: 13.75 in. (349 mm)
D: 24.25 in. (616 mm)

Weight 63 lb Warranty Machine: 3-Year Parts & Labour, Torch: 90 Days Parts

Non Stock Item – Please allow 2 week lead time

Full Product Data Sheet | MultiMatic 235 User Manual | MDX Torch Consumables
