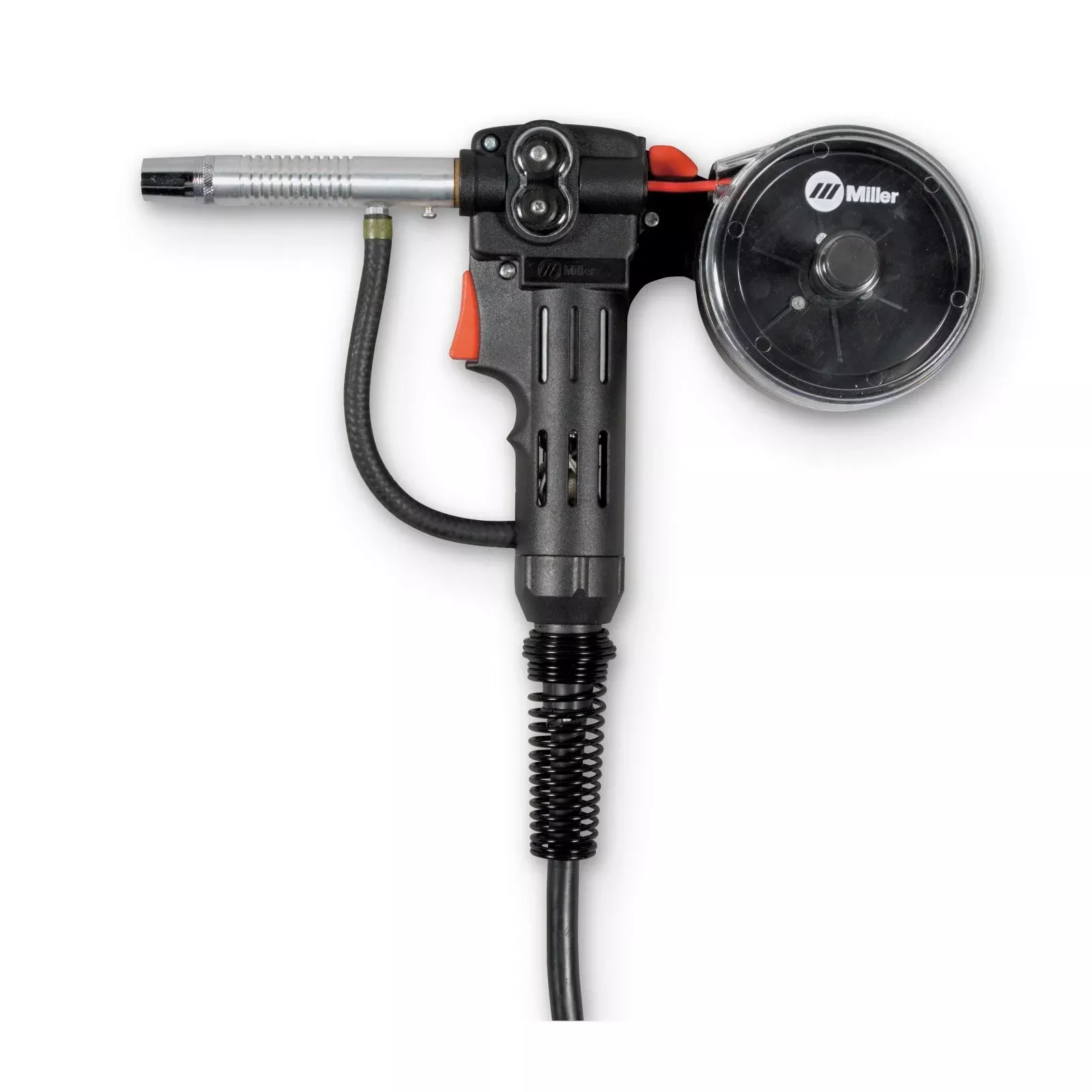

The Miller Spoolmate 100 MIG Gun (300371) is designed to be used the Millermatic 141, Millermatic 190, Millermatic 211, Multimatic 200, Multimatic 215, Multimatic 220, and the Syncrowave 210 MIG/TIG Complete. That’s one versatile MIG gun! The Spoolmate 100 is a light industrial gun for 4043 series aluminum wire rated at 135 amps at 30 percent duty cycle. The 12-foot direct-connect cable with heavy-duty strain relieve provides extended reach and accessibility to your work.
Dual V-knurled drive rolls with adjustable tension control for consistent feeding of different types of wire. A clear spool canister protects the wire and allows for easy visibility. Carrying case, extra contact tips and nozzle are included with this package.
Process:
MIG (GMAW) with Aluminum, Mild and Stainless Steels.
Applications:
• Aluminum Fabrication
• Home Maintenance and Repair
• Auto and Marine Repair
Specifications:
Welding Output Rating
• 135 A at 30% Duty Cycle
Wire Diameter Capacity
• .030 – .035 in (0.8 – 0.9 mm) aluminum
• .023 – .035 in (0.6 – 0.9 mm) steel, and stainless steel
Wire Speed
• MM 140: 5-365 IPM
• MM 180: 65-625 IPM
Max Spool Size Capacity
• 4 in (102 mm)
Net Weight
• 5 lb (2.3 kg) with cable assembly
