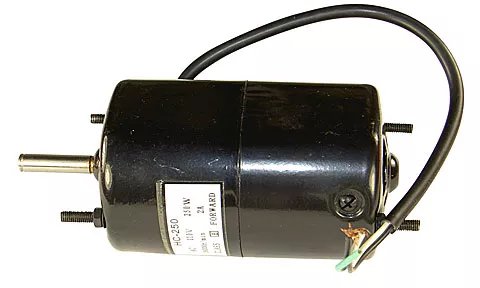

Motor, Tool Post Grinder

• Motor, 2001 Tool Post Grinder
• 110V AC 250 Watt motor draws 2 amps
• 18,000 RPM (nameplate, not tested)
• Turns clockwise when looking at end of shaft

The tool post grinder motor is approximately 110 mm long and 74 mm in diameter. The shaft is 8 mm in diameter and about 30 mm long. There is a 3 mm keyway.

The mounting studs for this electric grinder motor are M5, 13 mm long and 61 mm center to center.
