About this product

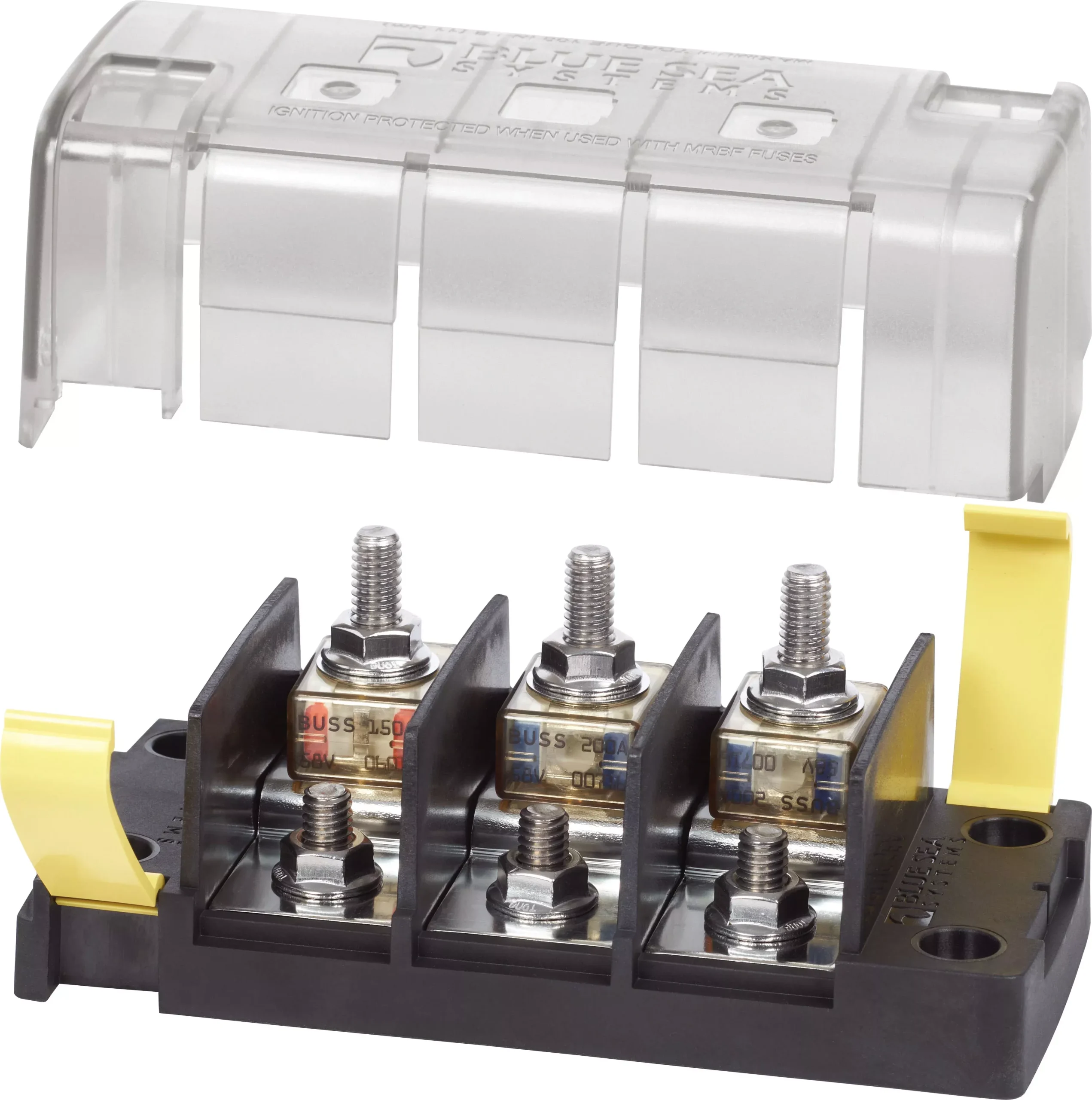

The Blue Sea Systems MRBF Surface Mount Fuse Block 5196 provides clean, high-amperage circuit protection in a compact, marine-ready design. Supporting three MRBF fuses, it’s ideal for multi-output battery chargers and demanding DC systems. An insulating cover, stainless hardware, and flexible wiring options ensure safe, organized installations.
Key Features
- Ideal for 3 output battery chargers
- Clip-on insulating cover satisfies ABYC/USCG insulation requirements
- Versatile wiring options allow all wires to come out a single side
- Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification
- One-piece stainless flange nuts ensure safe and secure connections
- Ignition protected
Technical Specification
Maximum amperage300A per block 240A per circuitMaximum voltage58V DCMounting surface mountM5 (10)Maximum torque100 in-lb (11.3 Nm)Terminal stud sizeM8 (5/16″-18)
