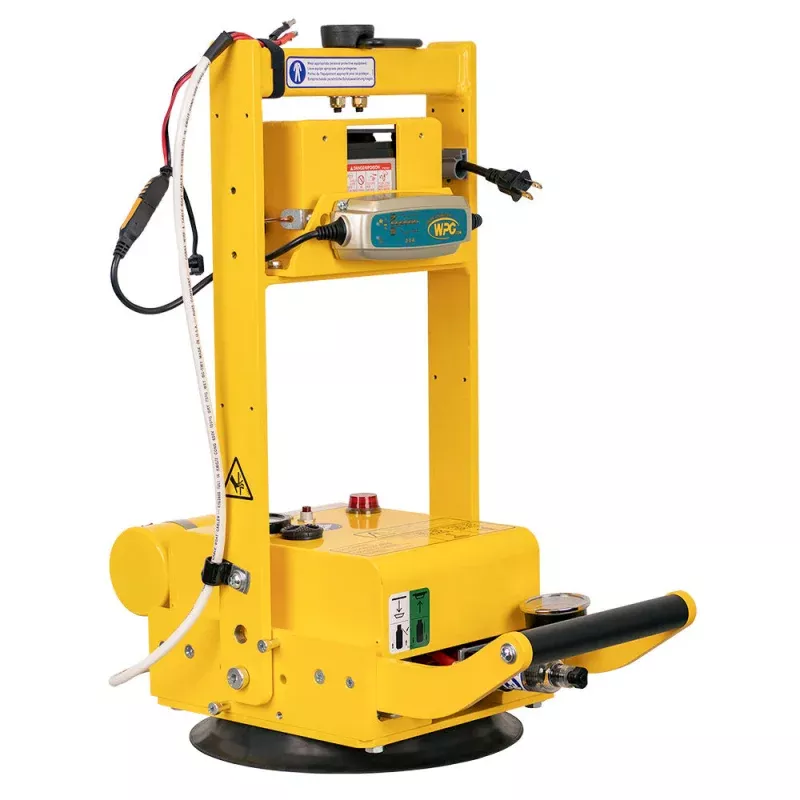

Wood’s Powr-Grip MT2HV11AIR Compressed Air Vacuum Lifter 300 lb Full-Capacity Vertical & Flat Lifting
The Wood’s Powr-Grip MT2HV11AIR is a compressed-air-powered vacuum lifter rated for 300 lbs (135 kg) in both vertical and flat lifting orientations, engineered for ergonomic single-operator handling of heavy loads on the job site. Designed for trades professionals and contractors, it eliminates the need for two-person lifts and reduces the risk of strain injuries when positioning large panels, glass, stone, or similar materials. The compressed air power source makes it well-suited for job sites where a shop air supply is readily available and battery charging or AC power access is limited or inconvenient. This is a full-capacity MT2-series model, delivering rated load performance in all lifting modesnot just flat.
Unlike the MT1-series models which are limited to 150 lbs (70 kg) in vertical orientation, the MT2HV11AIR maintains its full 300 lb (135 kg) rated capacity regardless of whether the load is lifted flat or tilted to vertical, making it the more capable choice for demanding applications that require frequent repositioning of heavy materials. Its compressed air power system eliminates battery management concerns entirely and provides continuous operation as long as an air supply is connected.
Key Features & Benefits
Full 300 lb Capacity in Vertical and Flat Modes
The MT2HV11AIR is rated at 300 lbs (135 kg) for both vertical and flat lifting, giving contractors full-load capability no matter how the material is oriented. This removes the need to downgrade operations or use a secondary lift assist when tilting heavy panels into position. Competing MT1-series units drop to 150 lbs (70 kg) in vertical mode.
Compressed Air Power Source
Powered by a standard compressed air supply, this lifter is ideal for job sites with readily available shop air and eliminates the downtime associated with battery charging or the infrastructure requirements of AC power. The air-powered system provides consistent, reliable vacuum generation as long as supply pressure is maintained.
Manual Tilt Function
The integrated manual tilter allows a single operator to reposition loads from flat to verticalor any angle in betweenwithout setting the load down or recruiting additional personnel. This is critical for installing wall panels, curtain glass, or countertops where orientation changes are part of the normal workflow.
Single-Operator Ergonomic Design
The lifter is purpose-built to allow one person to safely handle heavy, awkward loads that would otherwise require a crew. Dual control handles, vacuum gauges, and warning indicators keep the operator informed of load status throughout the lift. This directly reduces labor costs and minimizes the risk of musculoskeletal injury on site.
Vacuum Monitoring and Warning System
Built-in vacuum gauge, low-vacuum warning light, and audible warning buzzer provide continuous feedback on pad seal integrity during operation. If vacuum drops to an unsafe level, the operator is immediately alerted before load integrity is compromised. This safety architecture is essential for overhead or elevated lifts where a sudden release could cause serious injury or damage.
Robust, Field-Serviceable Construction
The lifter is designed for field inspection, testing, and maintenance by skilled technicians using the published service manual. Replaceable air filter elements, vacuum pump diaphragms, and head assemblies mean the unit can be kept in service with standard servicing rather than full replacement. Wood’s Powr-Grip publishes comprehensive operating instructions, service manuals, and troubleshooting guides to support ongoing maintenance.
Common Applications
Large-Format Glass and Glazing Installation
Ideal for setting curtain wall panels, storefront glass, and architectural glazing where precise positioning and controlled tilting from flat to vertical is required by a single glazier.
Stone and Tile Countertop Setting
Allows one installer to lift and position heavy granite, quartz, or marble countertop slabs without a full crew, reducing labor cost and improving placement accuracy.
Composite and Fiber Cement Panel Installation
Handles large, heavy cladding panels on commercial and residential facades, enabling a single operator to maneuver panels into place at height with full control.
Precast Concrete Panel Handling
Suitable for moving and positioning smooth-faced precast concrete elements in manufacturing, tilt-up, or installation environments where surface integrity must be maintained.
Solid Surface and Engineered Stone Fabrication
Used in fabrication shops to safely rotate, reposition, and transport heavy stone or solid surface workpieces between workstations without mechanical handling damage.
General Heavy Panel and Board Handling
Applicable to any job site or shop environment where single-operator ergonomic handling of flat, non-porous heavy loads is required, including metal sheets, laminated panels, and similar materials.
Compatible Materials
- Flat glass and tempered glazing panels
- Granite, marble, and natural stone slabs
- Quartz and engineered stone surfaces
- Smooth precast concrete panels
- Fiber cement and composite cladding panels
- Metal sheets and polished metal panels
- Solid surface and laminate panels
- Ceramic and porcelain large-format tile
- Smooth-faced wood composite and MDF panels
Product Documents
- Operating InstructionsMT1(2)HV11AIR
- Service ManualAir-Powered Models
- Troubleshooting GuideGeneric Leak Test
Application Instructions
Before Using the Lifter
- Read and understand the full operating instructions before operating the equipment.
- Connect the lifter to a suitable compressed air supply meeting the manufacturer’s pressure requirements.
- Perform all pre-use inspections per the inspection schedule in the operating instructions.
- Conduct a lifter/load compatibility test and vacuum test before lifting any rated load.
- Verify the vacuum gauge reads correctly and that the warning light and buzzer are functional.
Attaching the Lifter to a Load
- Position the lifter squarely on the load surface, ensuring all vacuum pads contact the material fully.
- Activate the vacuum system and allow it to reach full vacuum.
- Read the vacuum gauge to confirm adequate seal before attempting to lift.
- If the low-vacuum warning light or buzzer activates, do not liftreposition pads and re-seal.
Lifting, Moving, and Tilting the Load
- Use both control handles to maintain control of the lifter and load throughout the move.
- Monitor vacuum indicators continuously during the lift and move.
- To tilt the load, engage the tilt release lever and rotate the load to the desired angle.
- Never exceed the rated load capacity of 300 lbs (135 kg) in any lifting orientation.
- In case of power failure, follow the emergency procedures outlined in the operating instructions before attempting to release the load.
Releasing and Storing the Lifter
- Set the load down on a stable surface before releasing vacuum.
- Release vacuum and confirm the load is fully supported independently before removing the lifter.
- Disconnect from the air supply after use.
- Inspect pads and all components after each use per the maintenance schedule.
- Store the lifter per the storage instructions in the operating manual.
Technical Specifications
Safety Data Summary
Hazard Information
- EU regulations require a secondary safety device when this lifter is used on construction sites and in other high-risk zones.
- Never lift a load if the low-vacuum warning light or audible buzzer is activethis indicates insufficient vacuum seal.
- Do not exceed the rated load capacity of 300 lbs (135 kg) in any lifting orientation.
- Ensure all vacuum pads are fully sealed to the load surface before initiating any lift.
- In case of air supply failure during a lift, follow the emergency procedures in the operating instructions immediately.
- Intended for use by professional equipment operators onlyread and understand operating instructions before use.
Personal Protective Equipment
- Wear appropriate PPE for the job site environment as required by local regulations.
- Use fall protection when working at elevation with lifted loads.
- Safety footwear is recommended when handling heavy loads.
Safe Handling
- Perform all required inspections and tests before each use, including the lifter/load compatibility test and vacuum test.
- Monitor the vacuum gauge and warning indicators continuously throughout every lift.
- Never use a lifter that has failed any inspection or testperform required service before resuming operation.
- Disconnect air supply when not in use and when performing any service or maintenance.
- Service must be performed by skilled technical professionals following the published service manual.
- Replace air filter elements, vacuum pump diaphragms, and other wear parts per the service schedule.
- Store and transport the lifter per the instructions in the operating manual to prevent damage between uses.
Frequently Asked Questions
Q: What is the difference between the MT1HV11AIR and the MT2HV11AIR?
A: The MT1HV11AIR (Stock 97505) has a load capacity of 150 lbs (70 kg) in vertical orientation, while the MT2HV11AIR (Stock 97510) maintains its full 300 lb (135 kg) rated capacity in both vertical and flat lifting modes. Choose the MT2 when you need full-capacity performance regardless of load orientation.
Q: Does this lifter require any special air supply equipment?
A: The MT2HV11AIR requires a standard compressed air supply meeting the pressure and flow specifications outlined in the product’s operating instructions. It is suited for job sites with existing compressor infrastructure and shop air lines.
Q: Is a secondary safety device required with this lifter?
A: EU regulations require a secondary safety device when this lifter is used on construction sites and in other high-risk zones. Contractors operating in EU jurisdictions or on high-risk sites should ensure compliance with applicable local regulations before putting the lifter into service.
Q: Can this lifter be serviced in the field?
A: Yes. Wood’s Powr-Grip publishes a dedicated service manual for air-powered models covering air filter maintenance, vacuum pump diaphragm replacement, head assembly replacement, and vacuum switch adjustment. Service should be performed by skilled technical professionals following the published service manual.
Q: What surfaces is this lifter compatible with?
A: The MT2HV11AIR is compatible with smooth, non-porous flat surfaces including flat glass, polished and honed stone slabs, smooth precast concrete, metal sheets, fiber cement panels, large-format ceramic and porcelain tile, and similar materials. Porous, rough, or highly textured surfaces may not provide adequate vacuum sealalways perform a lifter/load compatibility test before lifting.
Q: Where can I find the operating instructions and service documentation for this lifter?
A: Full operating instructions, service manual, and troubleshooting guide are available as PDF downloads in the Product Documents section above. These documents are also archived on the Wood’s Powr-Grip website at www.wpg.com.
