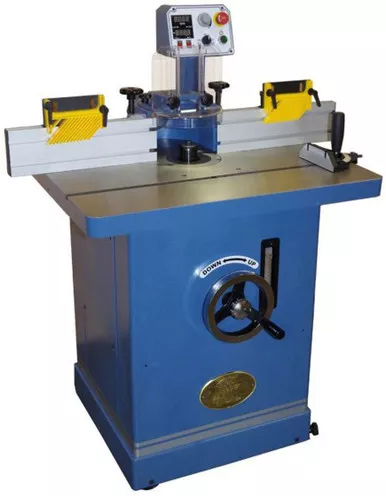

Oliver Shaper – 5HP, 1PH Model 10047.002
NO SALES TAX EVER!
The Oliver 10047VS Shaper is the gold standard in the industry and was designed to handle a variety of wood shaping tasks. A strong 3 HP motor with a quiet start and cutting-edge speed-control technology that can provide between 5,000 to 10,000 Spindle RPM comes standard and a large cast iron table provides a solid work surface.
- Variable Frequency Drive provides 5,000 to 10,000 Spindle RPM.
- Elevated control panel with DRO, emergency stop, and speed control.
- DRO measures spindle RPM and spindle height.
- Large cast iron table is precision ground to provide a solid work surface.
- Table features pre-drilled and threaded holes for optional power feeder.
- Full cabinet stand includes wheels and locks.
- 1-1/4” interchangeable spindle included, other optional sizes available.
- Optional router bit collets available.
- Poly V-belt drive for smoother operation.
- Spindle reverses for more options with each set-up.
- Four inches of spindle travel allows more set-up options.
- Starting pin for irregular shapes included.
- Fence is independent and includes micro adjustment.
- Adjustable hold downs add to a safer operation.
- Extra large handwheel for easy and quick height adjustment.
- Miter gauge included.
- Powerful TEFC motor to meet your needs.
Model Number 10047VS
Ph 1Ph
Stock No. (3HP, 1Ph) 10047VS.001
Spindle Speeds 5,000 to 10,000 RPM
Spindle Diameter 1-1/4”
Verticle Spindle Travel 4″
Spindle Direction Reversible
Under Nut Capacity 4″ with 1-1/4″ Spindle
Table Opening 6-1/4” / Large Insert Opening 4-5/16”
Small Insert Opening 2-1/2” / Table Height 34-3/8″
Table Size 32” x 26”
T-Slot 3/4″ x 3/8″
Fence Size (2) 4-13/16” x 16”
Dust Port Diameter 4″
Minimum CFM 800
Motor 1Ph 3HP, 220V only (8 Amp)
Net Weight 396 lbs.
Gross Weight 511 lbs.
