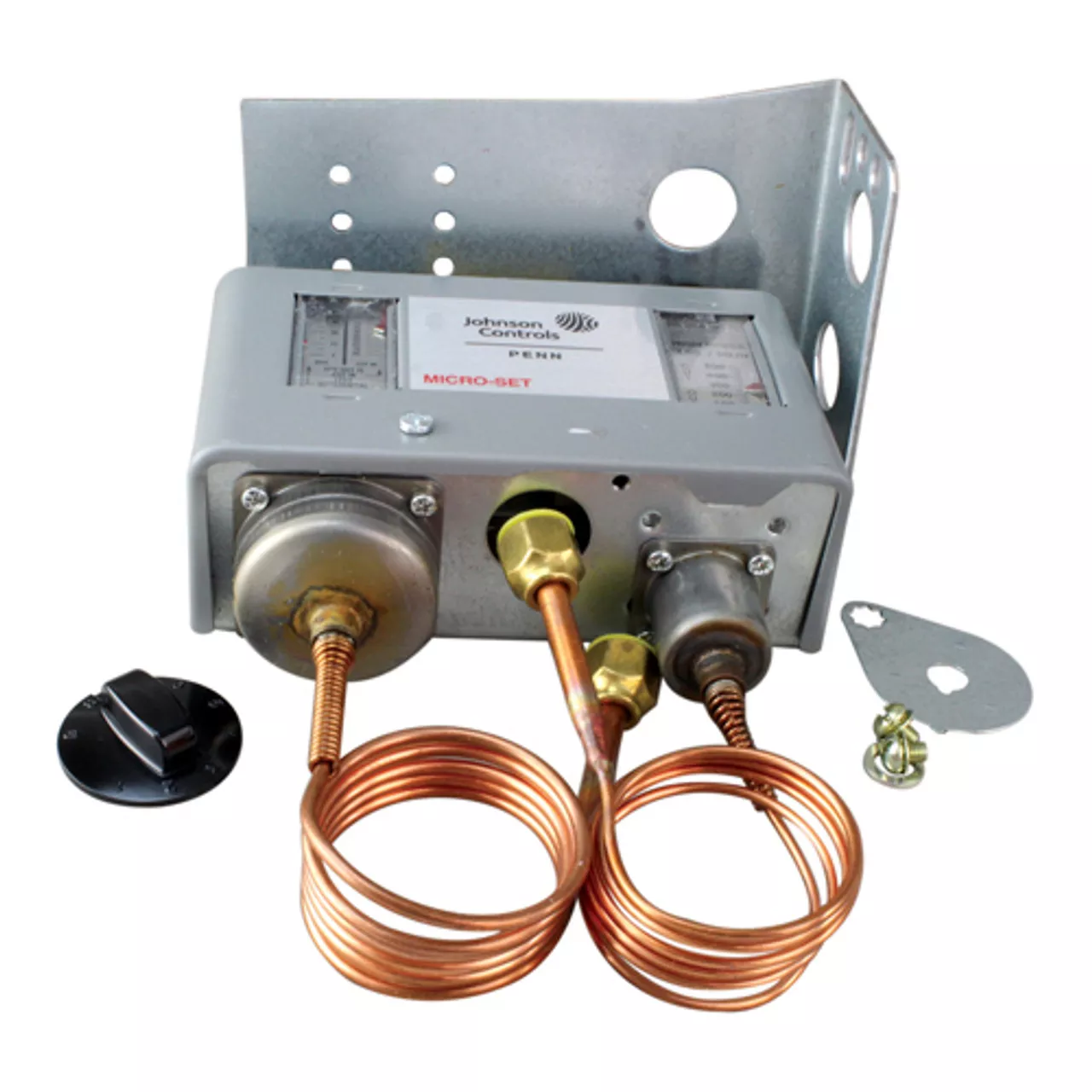

P70LB-6 – Neuco – Micro Set Dual Pressure Control

Specifications

• Ship Weight : 4.93 LBS.
• Connection Size : 36 capillary tube with 1/4 flare nut
• Gas Type : Non-Corrosive Refrigerants
• Height (in) : 2
• Length (in) : 7.25
• Plating : Non-Corrosive
• Psi : 12 to 80 low range, 100 to 500 high range
• Width (in) : 6

DescriptionJOHNSON CONTROL FOR DUAL PRESSURE APPLICATIONS.MICRO SET CONTROL DIFFERENTIAL ALLOWS FOR PRECISECONTROL ON CRITICLE LOW PRESSURE APPLICATIONS.RANGE 12″ TO 80″ (-41 TO 551 kPa)DIFFERENTIAL MIN 5″ (34 kPa) MAX 35″ (241 kPa)PRESSURE CONNECTION 36″ CAP W/ 1/4″ FLARE NUTHIGH PRESSURE SIDE RANGE 100″ TO 500″ (690 TO 3447 kPa)NON ADJ DIFFERENTIAL 65″ (448 kPa) FIXEDLIMITED KNOB ADJ (SUPPLIED/NOT ASSEMBLED) LOW, CUT-OUTSWITCH ACTION SPSTCODE P70LB-6C, NON-CORROSIVE REFRIGERANTSDESIGNED PRIMARILY FOR LOW PRESSURE CUT-OUT CONTROL ANDCAPACITY CONTROL ON COMMERCIAL REFRIGERATION AND AIRCONDITIONING APPLICATIONS.
