About this product

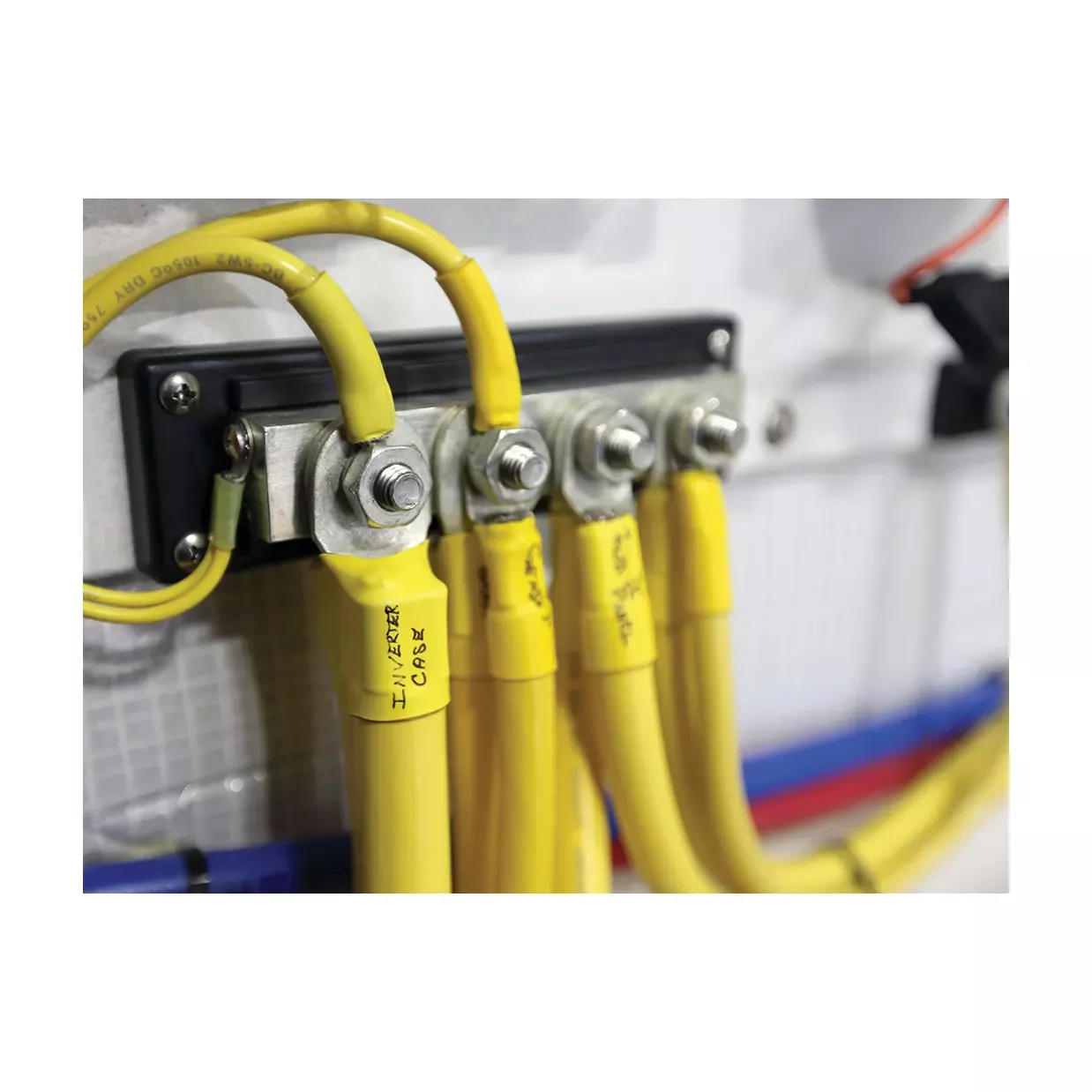

4 Gang Heavy duty Busbar rated up to 600A. Includes Four 3/8″ – 16 Studs. Maximum voltage 300 VAC or 48 VDC. This Heavy Duty Bus Bar is often used as a ground bus for large negative battery cables.
Key Features
• Bus has 3/8″-16 stud terminals on top and two 8 screw terminals on each end
• Bus continuous amperage: 545 amperes AC and 600 amperes DC
• Voltage rating: 300 volts AC maximum and 48 volts DC maximum
• Bus material: tin-plated copper
• Base material: glass re-inforced Lexan® polycarbonate
• At nearly 1-3/4 lb, this is a very heavy-duty bus
Technical Specification
Dimensions2.00″W x 7.00″LTypePowerBar 4 x 3/8″ Stud Terminals
