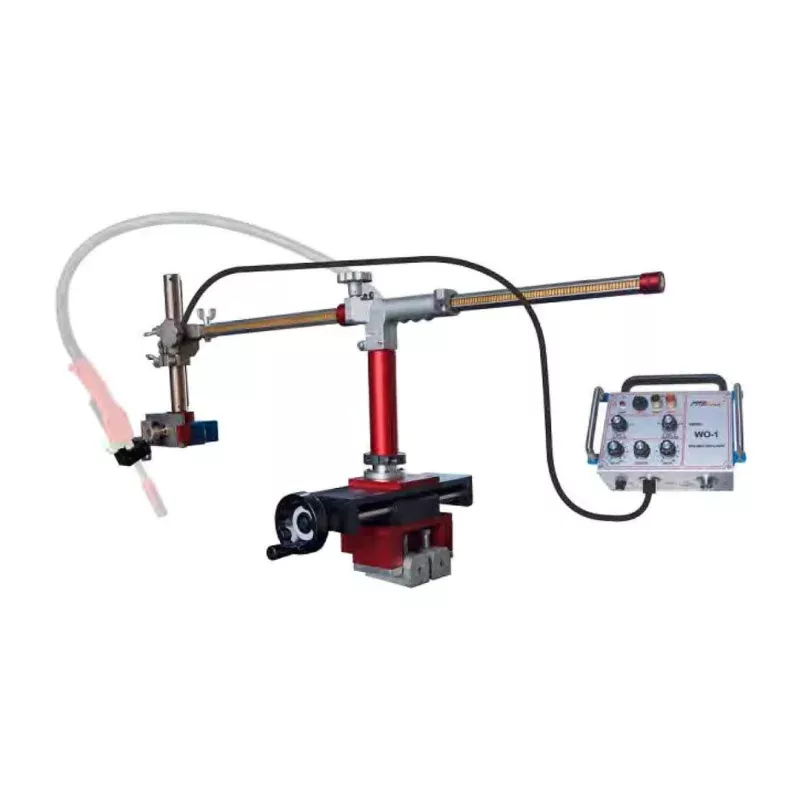

Profax XRS-Oscillator Extended Reach Welding Oscillator
The Profax PXXRS is a linear welding oscillator designed for automated torch manipulation. It is used to provide consistent oscillation of the welding arc to control bead width and penetration in automated welding applications.
Features
- Linear Oscillation: Motorized horizontal movement for consistent weld patterns.
- Extended Reach: 33 total reach with a 27 horizontal adjustment range.
- Variable Control: Adjustable dwell times (left and right) and oscillation width via pendant.
- Positioning: Includes a manual cross slide and a dual-axis articulated head for torch alignment.
- Mounting: Swivel base with an 8 removable riser and clamps for various work configurations.
- Drive System: 24V DC motor with rack-and-pinion drive.
Specifications
110V/220V AC (Switchable)
02.0 Seconds (Independent L/R)
What’s Included
- WO-1S – Linear Oscillator Head
- WO-CP – Control Pendant with Cable
- XRS-EXT – 27 Horizontal Adjustment Arm
- XRS-MCS – 8 Manual Cross Slide
- XRS-VS – 8 Vertical Slide
- XRS-AJ – Dual Axis Articulated Joint
- XRS-SB – Swivel Base & 8 Riser
- MC-1 – Mounting Clamp Set (2 pieces)
