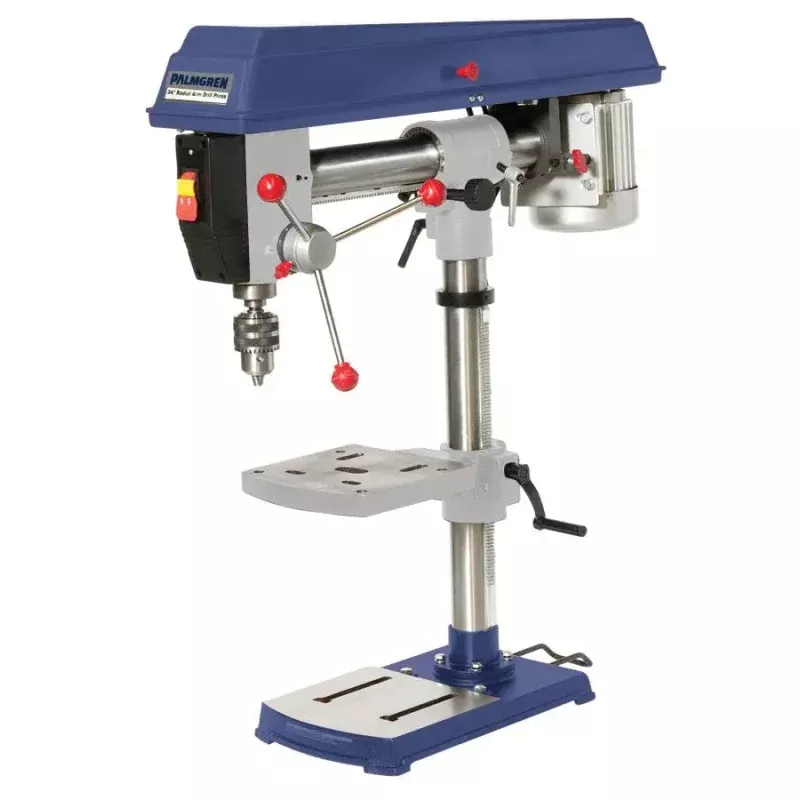

Radial Arm – 5 Speed Step Pulley Benchtop Drill Press

An extended reach, tilting drill head is ideal for large or odd-shaped work pieces.

The table tilts 45 left or right allowing easy machining of holes at almost any angle.

• Durable cast iron head, table & base
• Spindle supported by high quality ball bearings
• Rack and pinion table raiser
• Table tilts 45 right & left and swivels 360 around the column
• 1/2″ through table & base slots for easy mounting and clamping of workpiece
• Front mounted safety, paddle on/off switch
• Drill chuck & key
• The head tilts 90 left and 45 right
• The head of the drill press moves 12-1/2″ forward or backward

More Information Details AMPS 5.5 Capacity Cast Iron 5/8″ Country of Origin CN Drill Press Model Bench Model Model Number 80341 Motor HP 1/2 RPM 6002592 Spindle Taper MT2/JT33 Spindle Travel 3-5/32″ Swing 9″ to 33″ Table Dimensions 8-7/8″ x 9″ Table Slots 1/2″ Voltage 115 Warranty 3 Year UPC 726896803418 Unit of Measure Each Product Height (in) 13 Product Length (in) 37 Product Width (in) 16.5 Product Weight (lbs) 100
