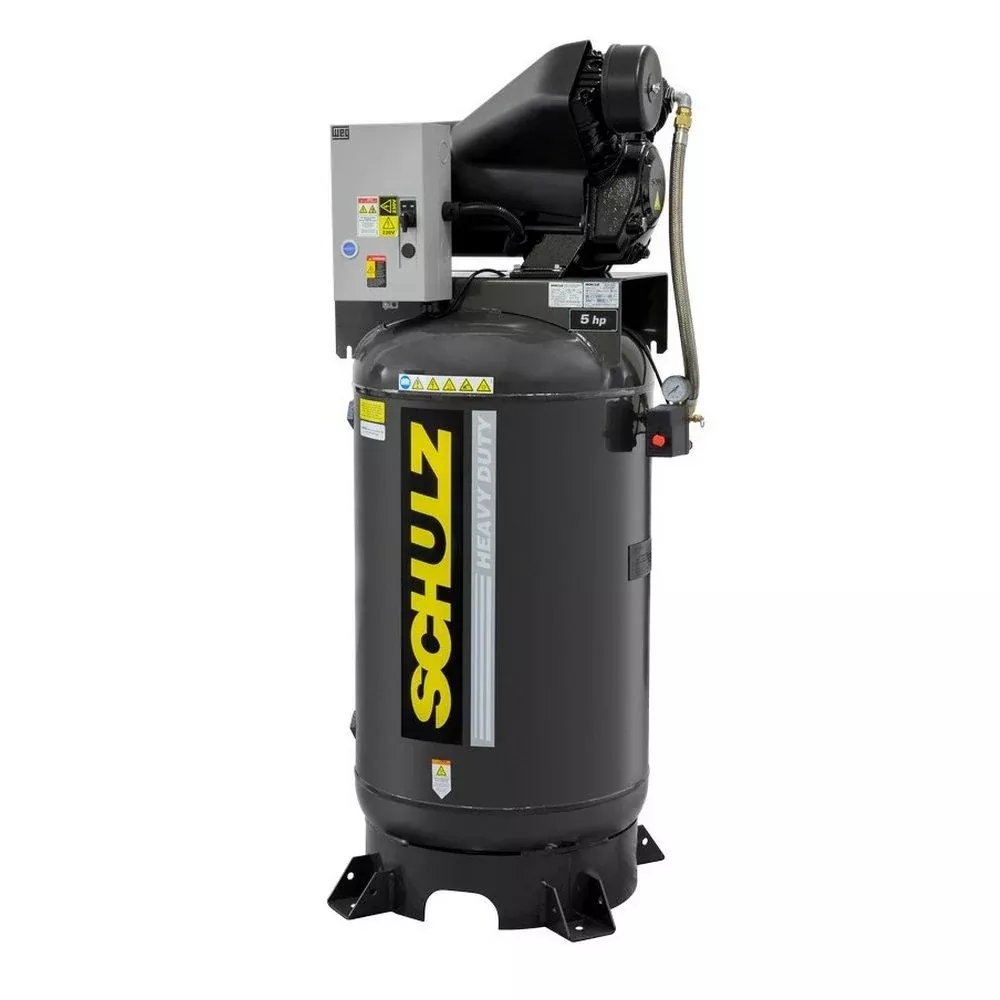

The Schulz Audaz MCSV 20 AP Vertical is a 5 HP direct-coupling industrial reciprocating compressor featuring Schulz’s patented IC-TECH® technology — an integrated connection between the high-efficiency compression stages that delivers 20% less energy consumption than belt-drive equivalents. No belt drive, no pulleys, no exposed rotating parts.
Audaz IC-TECH® Advantages
- 20% less energy consumption — direct coupling eliminates transmission losses.
- Up to 300-hour oil change interval — longest in the Schulz reciprocating lineup; lower operating temperature reduces wear.
- No belt drive maintenance — no belts to tension, replace, or guard.
- Stainless-steel valve system — robust and long-lasting.
- Forced-flow air cooling — actively reduces operating temperature.
- No exposed rotating parts — no flywheel, pulley, or belt to guard.
Specifications
| Model | MCSV 20 AP AUDAZ |
|---|---|
| Schulz Code | 932.9363-0 |
| Type | Reciprocating, Two-Stage, Direct-Coupling, IC-TECH |
| Horsepower | 5 HP |
| Free Air Delivery | 14.2 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 80 gallon ASME, vertical |
| Voltage / Phase | Three-phase 230V |
| Pump RPM | 1,750 |
| Weight | 358 lb |
| Dimensions (LxWxH) | 24 x 28 x 67 in |
| Patented Technology | IC-TECH integrated stage connection |
| Pump Warranty | 2-Year Pump Warranty |
| Country of Origin | Brazil |
