About this product

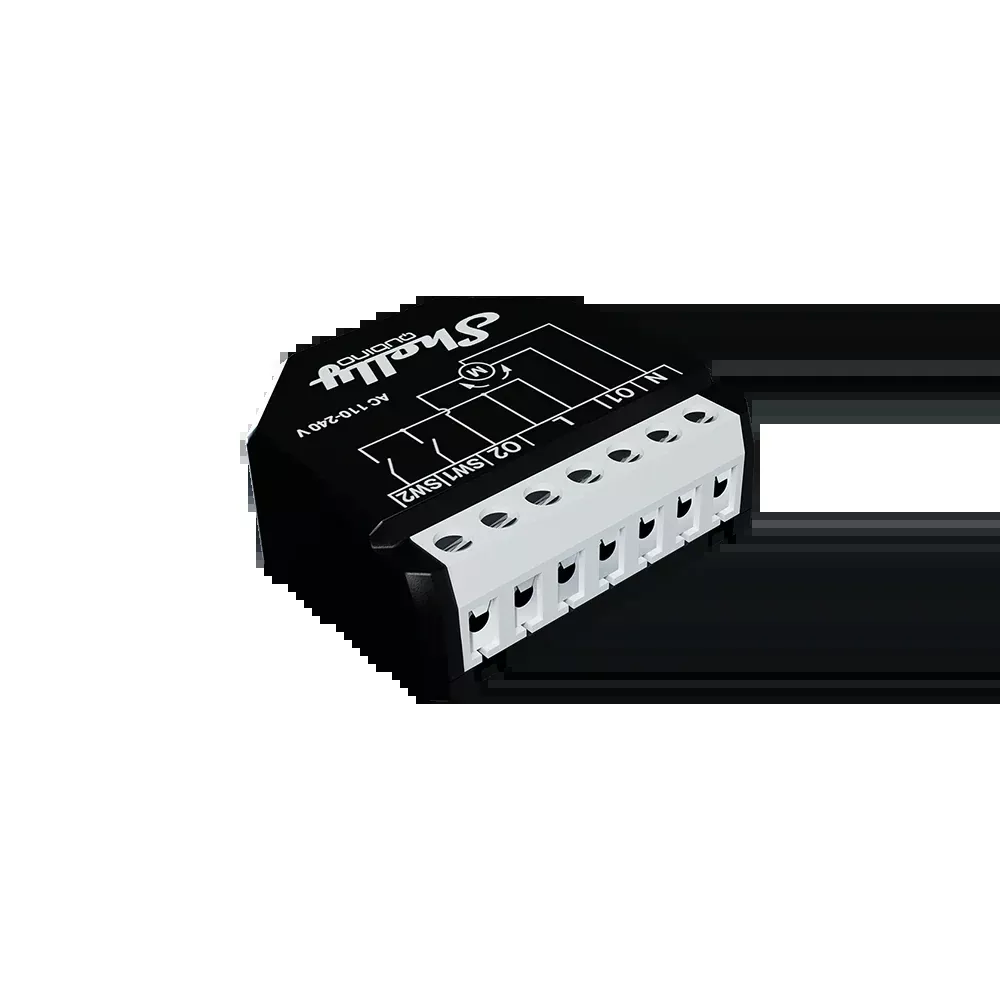

The Device enables remote control of motorised blinds, roller shutters, venetian blinds, awnings, etc. It measures power consumption of the connected device.
It is recommended to use only motors for blinds with electronic or mechanical limit switches. Motor limit switches must be set correctly before connecting the Device to the motor.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
Key Features
- Control the tilt position (angle) of the venetian blind slats
- Supports push-buttons/momentary switches, and toggle switches
- Power metering
- Extremely low power consumption: <0.3 W
- Z-Wave frequency band: 908.4 MHz
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
- *A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Technical Specification
Size (H x W x D)37 x 42 x 16 ± 0.5 mm / 1.46 x 1.65 x 0.63 ± 0.02 inWeight29gMountingWall consoleConductor cross section0.5 to 1.5 mm² / 20 to 16 AWGShell materialPlasticAmbient temperature-20°C to 40°C / -5°F to 105°FPower supply110-240 V AC +/- 10%Power consumption<0.3 W
No Documentation available.
