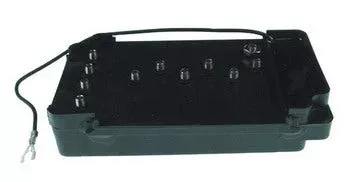

Switch Box
Installation and Troubleshooting Guide for this part. (Document provided by CDI Electronics Inc)
Fits:
Chrysler / Force
70 HP 1991-92 serial range E000001-E009499
90 HP L Drive 1991 B & D Models
90 HP 1991 D Model
90 HP 1991 serial range E000001-E009499 & E009500-E039023
Mercury / Mariner
50 HP 1984-90 serial number 6428681-D000749
60 HP 1984-90 serial number 6428681-D000749
65 HP 1976-79 serial number 4382057-4571651
70 HP 1977-87 serial number 4571652-A730815
70 HP 9 amp 1987-93 serial number A996142-D283221
70 HP 16 amp 1987-93 serial number A996142-D283221
75 HP 9 amp 1987-93 serial number A996142-D283221
75 HP 16 amp 1987-93 serial number A996142-D283221
80 HP 9 amp 1987-93 serial number A996142-D283221
80 HP 16 amp 1987-93 serial number A996142-D283221
90 HP inline 1979-86 serial number 5299506-B11053
90 HP electric start 1987-92 serial number A996142-C221999
90 HP Sport Jet 1995 serial number E021000-E095087
105 HP Jet 1992-95 serial number D082000-OG201874
105 HP Jet 1996-00 serial number OG303046-OG840500
115 HP inline 1979-80 serial number 5314656-5600966
115 HP inline 1980-82 serial number 5600967-6051525
115 HP inline 1982-89 serial number 6051526-C10000
135 HP 16 amp 1985-88 serial number A904646-C100860
135 HP 40 amp 1989-90 serial number C100861-C239552
135 HP 16 amp 1990-91 serial number C239553-D081999
135 HP 40 amp 1990-91 serial number C239553-D081999
135 HP 40 amp 1992-95 serial number D082000-OG201874
135 HP 40 amp 1996-00 serial number G303046-G840500
140 HP inline 1979 serial number 5327663-5625107
140 HP 1980 serial number 5625108-5669999
140 HP Jet 1992-95 serial number D082000-OG201874
140 HP Jet 1996-99 serial number OG303046-OG760300
150 HP XR2 Magnum 1978-86 serial number 4868998-OA904645
150 HP 1985-88 serial number A904646-C100860
150 HP 1989-90 serial number C100861-C239552
150 HP 16 amp 1990-91 serial number C239553-D081999
150 HP 40 amp 1990-91 serial number C239553-D081999
140 HP 40 amp 1992-95 serial number D082000-OG201874
150 HP 40 amp 1996-00 serial number OG303046-OG840500
175 HP Black Max 1976-79 serial number 4301235-5393736
175 HP Black Max 1979-84 serial number 5593737-6618750
175 HP 9 amp 1985-88 serial number 6618751-C100860
175 HP 16 amp 1985-88 serial number 6618751-C100860
175 HP 40 amp 1989-90 serial number C100861-C239552
175 HP 16 amp 1990-91 serial number OC239553-OD081999
175 HP 40 amp 1990-91 serial number OC239553-OD081999
175 HP Xri EFI 40 amp 1992-95 serial number OD082000-OG201874
175 HP Xri EFI 40 amp 1996-00 serial number OG303046-OG840500
200 HP Black Max 1978-79 serial number 4839034-5363917
200 HP Black Max 1979-81 serial number 5363918-6073191
200 HP 15 amp 1982-90 serial number 6073192-C239553
200 HP 16 amp 1985-90 serial number 6625221-C239553
200 HP 16 amp 1989-95 serial number C100861-OG201874
200 HP Xri 40 amp 1989-91 serial number C100861-OG303045
200 HP 16 amp 1992-99 serial number D082000-OG201874
200 40 amp 1989-91 serial number OG201875-OG30345
200 HP EFI 1992-99 serial number D082000-OG840500
220 HP 1987-88 serial number B117316-C100860
225 HP 1983-93 serial number 5628028-D280812
250 HP 2.5L 16 amp 1989-94 serial number C101891-D280900
250 HP 2.5L 40 amp 1989-94 serial number C101891-D280900
275 HP 16 amp 1989-94 serial number C101891-D280900
275 HP 40 amp 1989-94 serial number C101891-D280900
300 HP 3.4L 1980-87 serial number 5611648-A996135
Sport Jet
90hp 1993-95
Replaces: 332-5524, 332-5524A1, 332-7778, 332-7778A1, 332-7778A3, 332-7778A5, 332-7778A6, 332-7778A9, 332-7778A12, 18-5775-1, 1852, 361-7778
