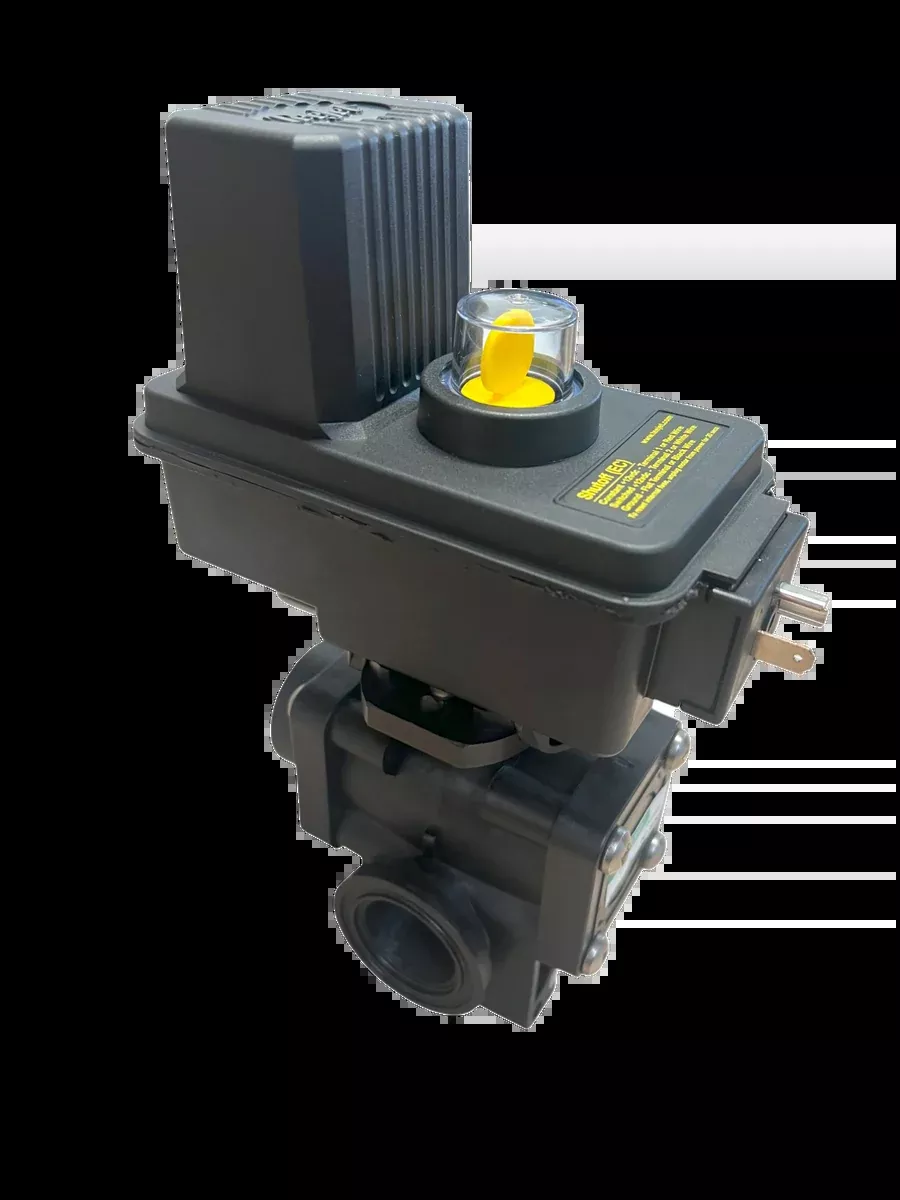

The TeeJet 460BEC 2-way ball valve manifold has adjustable bypass settings that maintain a constant system pressure regardless of the valve being in the ON or OFF position. This is particularly effective on sprayers equipped with positive displacement pumps. Available with E or EC series motors with cable or DIN electrical connections.
TeeJet 460BEC 2-way ball valve manifold features:
– 22 RPM, 0.7 second shutoff fully open to close.
– Version C has VisiFlo® color-coded settings thatcan be used to match multiple tips.
– Version E has a single adjustment.
– With a choice of threaded, QC (Quick Connect)hose barbs or 50 series flange fitting outlet connections.
– The TeeJet 460BEC manifold allows quick, simple plumbing for as many valves as needed for your sprayer.
– Stainless steel stem and ball.
– Flow rate: 25 GPM (94 l/min) at 5 PSI (0.34 bar) pressure drop, 35 GPM (132 l/min) at 10 PSI (0.69 bar) pressure drop.
– Maximum pressure rating of 300 psi (20 bar).
