The Pipeliner PAPR Welding Helmet System

The PIPELINER PAPR Welding Helmet System

The Pipeliner PAPR is a complete welding helmet PAPR system that delivers clean, fresh air to welding operators while under the hood. Featuring a custom pipeline style hood with flip-front lens holder, the customization options for your hood begin as soon as it comes out of the box.

• Classic Pipeliner shell style helmet
• Inside shroud with elastic band seals your face from external air
• Strong PAPR blower system filters atmospheric air from particles and fume
• Up to 8 Hours runtime on lowest blower setting
• Flip-Up lens retainer comfortably fits Auto-Darkening Filter Lenses + Cover Plates
• Lens Size: 2″ x 4-1/4″

The Pipeliner PAPR includes a standard Shade 10 passive filter plate, which can be swapped for any common 2×4″ glass, polycarbonate and ADF lenses. See the collection of available lenses HERE

PAPR Blower Specs

Product Name // Part Number The Pipeliner PAPR // 2520-1 Airflow velocity Low: 170L/MIN
Medium: 200L/MIN
High: 230L/MIN Switch On/off switch
Automatic shutdown if unused for 30 mins LCD Display Airflow level and data
Battery life
Filter status Warnings Low battery
Clogged filter
Airflow jammed causing low airflow
High battery temperature Working noise Max. 73dB High filter efficiency 99.996% @ 0.3um Filtration level TH2 PR SL Weight Complete unit 1370g, No batteries1020g Battery operating time

Level 1:>8h
Level 2:>6h
Level 3:>4h

Battery LI-ION 12v 4400mAh Charging time 3.5h Operating temperature -5C – +55C Certificates CE EN 12941.19
CSA

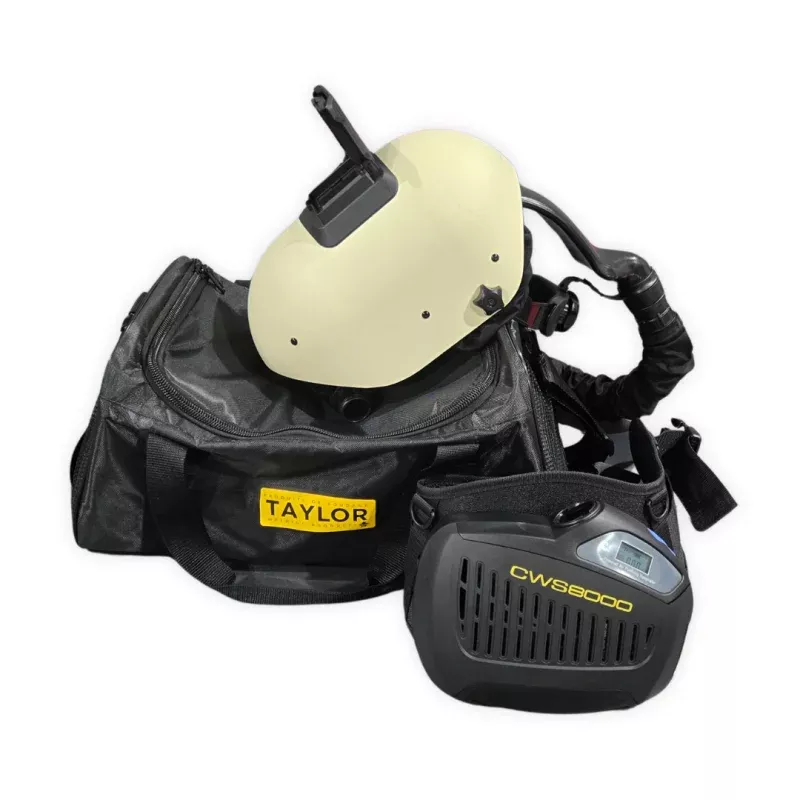

What’s In the Box

• The Pipeliner PAPR Welding Helmet w/ Flip-Up Lens Holder, Shade 10 Passive plate
• (1) CWS8000X PAPR Blower Unit
• (1) PAPR Breathing Tube w/ FR Cover
• (1) Main Filter
• (1) Filter Cover
• (1) Li-Ion Battery Pack
• (1) Battery Charger
• (1) Carry Bag w/ Strap
