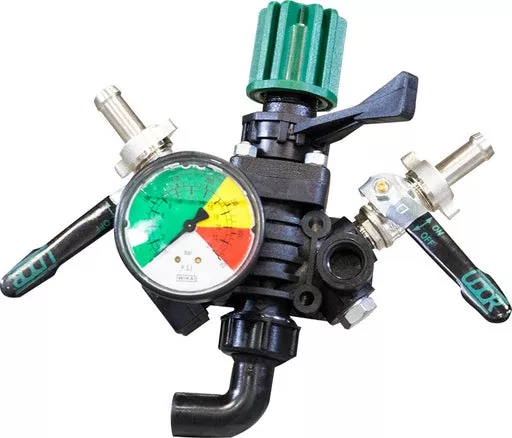

UDOR Pressure Regulator – 6010.96
ZETA-40P, ZETA-40P/GR, ZETA-85P, ZETA-85P/GR5
The Udor 6010.96 Control Unit can be mounted remotely or on the pump and provides right angle entry from the main body to the adjustable pressure regulator for a smoother operation and longer life. Comes standard with a manual dump lever, two 1/2″ (13 mm) ball valve discharge ports, and a glycerine-filled pressure gauge. It is the same as the 6010.95 Pressure Regulator, only it is fitted with a heat treated stainless steel poppet and seat, poly discharge plug and stainless mounting bolts.
Performance:
- Max. Flow: 22 gpm (83 L/min)
- Max. Pressure: 350 psi (24 bar)
Comes standard on and can be used with the following Udor Diaphragm Pumps:
- Zeta 40P
- Zeta 40P/GR
- Zeta 85P
- Zeta 85P/GR-5
