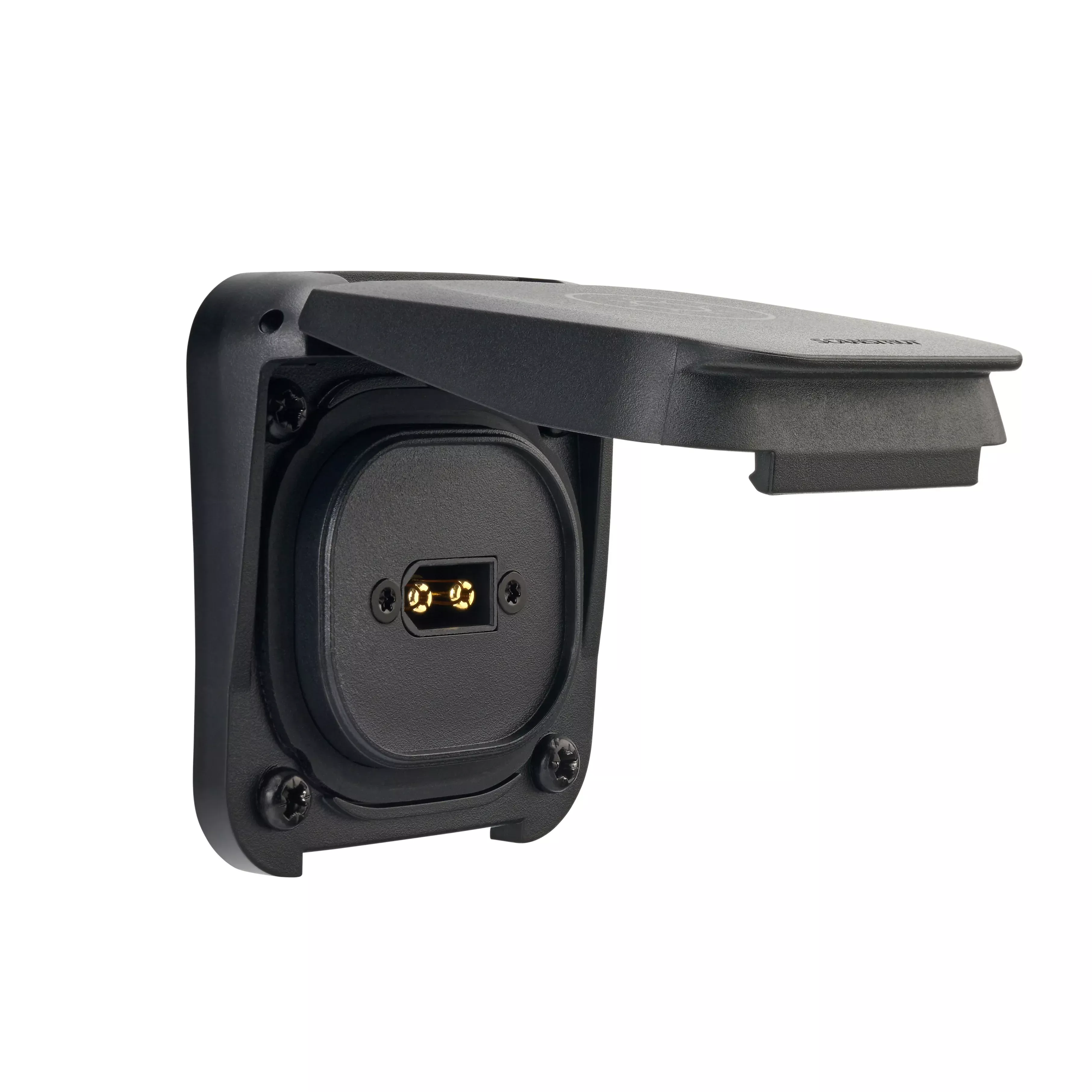

Ventura Series – XT60 Solar Connection

About this product

Whether you’re charging from solar panels at a remote campsite, powering a fridge in the back of your 4×4, or running gear from your overland trailer, Ventura delivers rock-solid reliability in every environment.

Built for the outdoors, its rugged, fixed design stays secure no matter the terrain, while the optimised cable fit supports higher voltages with ease.

From wild weekends in the mountains to long-haul road trips through the desert, Ventura keeps your adventure powered and ready to go.

Engineered with Scanstrut marine-grade innovation, these sockets undergo rigorous UV and waterproof testing (Waterproof Rating: IP68, IP69K) to withstand the harshest conditions. Crafted from 316 stainless steel, they ensure long-lasting durability and top-tier performance in any environment.

Backed by extensive research and development, the Ventura Series offers a sleek, compact, and uniform design, seamlessly integrating with other exterior sockets for power,  water, and solar connections.

Stay powered and adventure-ready, choose the Scanstrut Ventura Series for uncompromising outdoor connectivity.

Key Features

• Connector Type: Amass XT60EW-M (Male, waterproof)
• Waterproof Rating: IP68, IP69K (with lid closed)
• Design: Premium click-to-close design
• Installation: Easy install — standard 25mm (1.00”) holesaw installation
• Seal: Built-in gasket for a watertight seal
• Cover: Sprung to fully open 180°
• Materials: Marine-grade 316 stainless steel components
• Retention: 90° holding bump-feature
• Durability: UV resistant

Technical Specification

Connection TypeAmass XT60EW-M Male Waterproof TypeCompatible Connectors• XT60W-F Female Waterproof Type (IP65 in use)​ • XT60-F Standard Female TypeConnector Max​ Current• 30A Continuous​ • 60A InstantaneousConnector Max​ VoltageRated 500V DCMax Power Delivery​ (12V Input)360WMax Power Delivery​ (24V Input)720WMax Power Delivery​ (48V Input)1440WCable Size4mm² / 12AWGCable Length150mm (6”) Tinned Copper Wire

Technical Drawing

Installation Instructions
