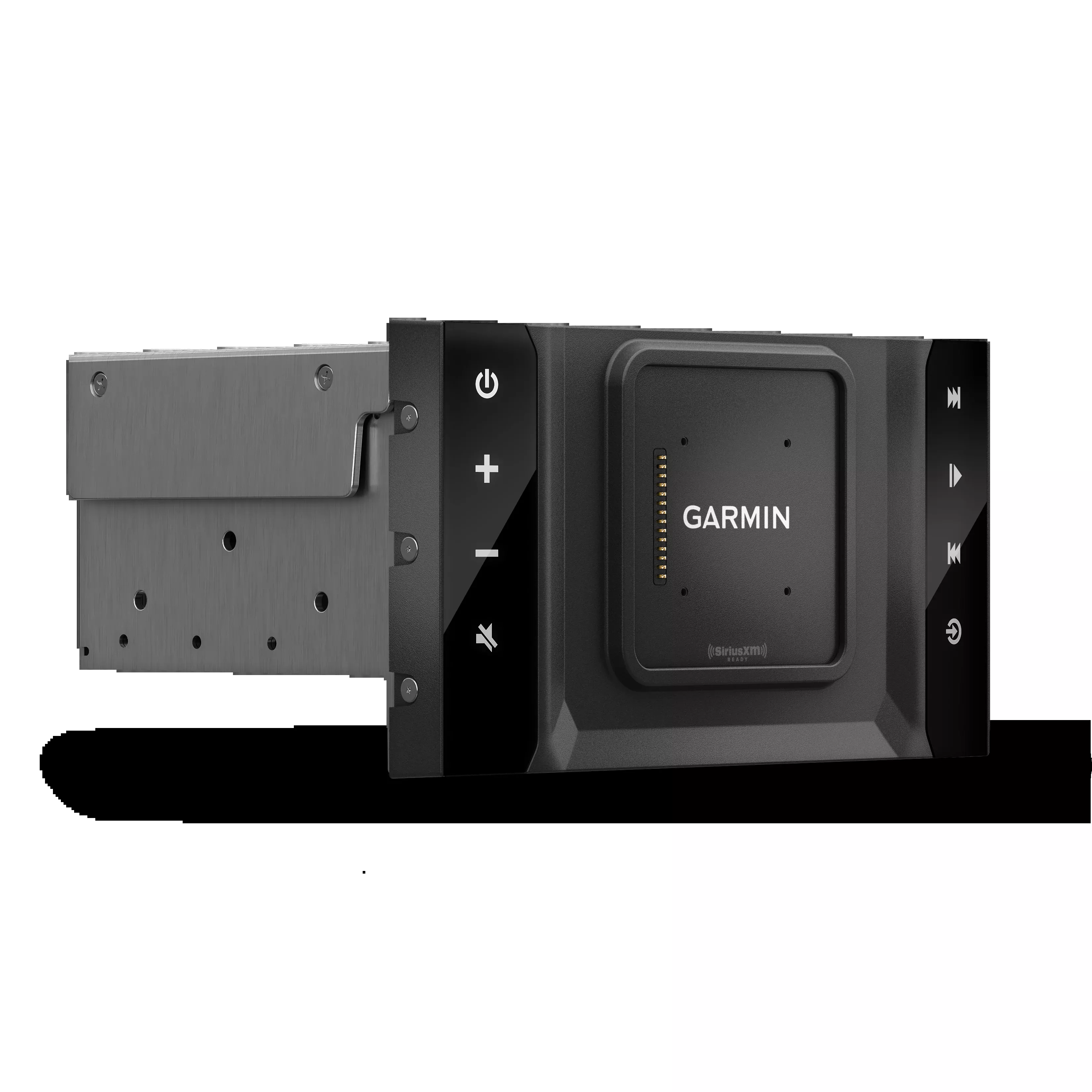

Vieo RV 51 Stereo Dock

THIS IS YOUR HOME BASE

The Vieo RV 51 stereo dock is the first step to building the fully integrated Vieo RV infotainment system into your RV. The dock is compatible with the 7”, 8” and 10” removable touchscreens.

Important note

This product is designed for RV OEM Manufacturers and installers with applicable experience. This product is not retail-friendly.

Technical Specification

Control buttonspower, volume up/down, mute, fast forward, play/pause, rewind, sourceDisplay sizesAccomodates RV 2020 Series 7″, 8″ and 10″ displaysFits DDIN cut-outyesSourcesAM/FM RDS / BLUETOOTH / Apple AirPlay 2 Wi-Fi audio streaming / USB audio / AUX x2 / UPnP / MTP / SiriusXM-ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ (available in Europe and Australia only)Radio featuresDual tuner (RV 52), REG / Regional setting, Alternate Frequency (AF) settingSiriusXMyes, with advanced featuresNumber of presets15 presets on eachMulti-zone technologyyes, four independent audio zones are available for a customized listening experienceDigital Signal Processing (DSP)yes, using environmental information and customized Fusion speaker profiles, you can now achieve customized optimized audioFusion-link control (wireless)yes, via the Fusion-Link smartphone appPartyBus technologyyes (receive and broadcast – wired or wirelessly). Audio distribution network that allows the ability to switch between Party Mode and Personal Mode without disrupting the audio in other areas of the vehicle.BLUETOOTH wireless technologyBLUETOOTH-audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 BLUETOOTH protocols) (Up to 10 meters (30 feet)WiFiyesANT technologyyes (up to 3 meters (10 feet))Internal amplifierClass-DPeak power280W maxAudio output4 x 26 Watts RMS @ 4 Ohms per channel @ 10% THD+N; 4 x 43 Watts RMS @ 2 Ohms per channel @ 10% THD+NAudio output4 x 26 Watts RMS @ 4 Ohms per channel @ 10% THD+N; 4 x 43 Watts RMS @ 2 Ohms per channel @ 10% THD+NCompatible devices• Garmin ConnectIQ watch models, ARX70, and ERX400 remotes for media controls • PartyBus networking with SRX400, RA770, and IN1501 • EmpirBus Connect 50 and DCM family modules via NMEA 2000Steering wheel controlIntegrates with compatible vehicle chassis steering wheel controlsOperating voltage+10.8 – 16V dcLine out4 (1 x L + R per zone. Requires external amplification)Auxiliary inputs2 x RCA inputs (AUX1 stereo input, AUX2 camera audio input only)EthernetOne Ethernet portUSB 2.0 port2 x USB 2.0 port (1 for phone charging/media playback on the dash; 1 reserved for Garmin accessory use)SiriusXMOne SiriusXM port (requires optional SiriusXM Connect vehicle tuner)AM/FM radioOne Motorola antenna connector portSpeaker4 x speaker connections (2 zone amplified)RCA pre-out (left, right and subwoofer)2 x zones of RCA pre-outs (L, R, Sub; 2 additional zones are in the ISO harness)RCA pre-out (left, right and subwoofer)2 x zones of RCA pre-outs (L, R, Sub; 2 additional zones are in the ISO harness)Ignition2 ignition connections (powered from house batteries with dual on/off control from ignition and/or house switch; plus front panel on/sleep button)Composite video4 x CVBS inputs (for backup, blindspot, and forward looking cameras)Digital I/O’s3 x camera selects, such that blind spot and back up can be triggered both automatically and manually by user via SWOperating voltage+10.8V – 16V DCRegionsUSA, Canada, Europe, EU DoC, Australia and New ZealandCertificationFCC, RSS (Canada),CE, USB, BLUETOOTH SIG, Apple Mfi, WiFi, RoHS

No Documentation available.
